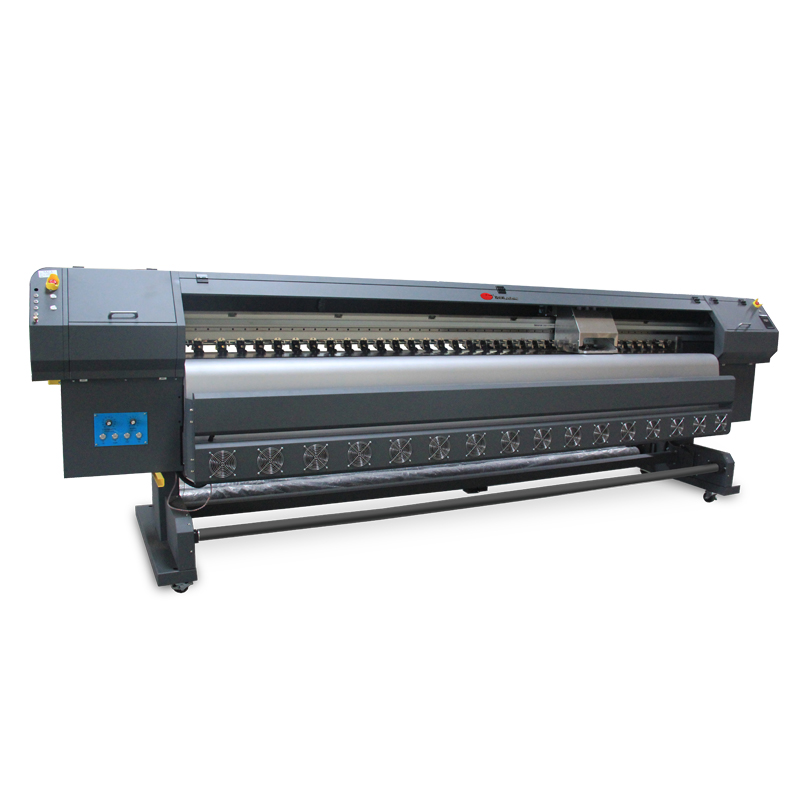

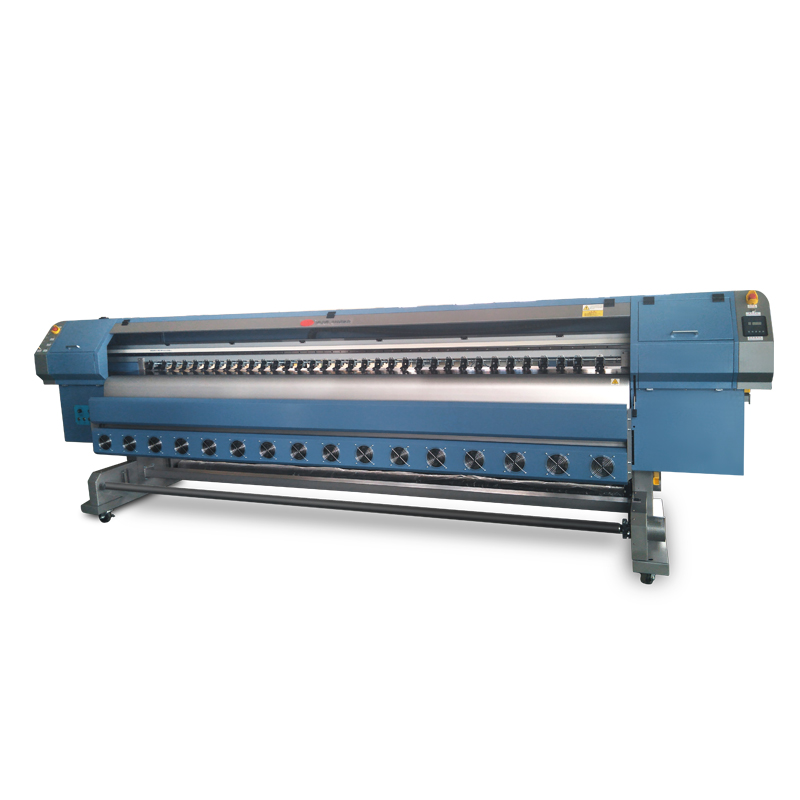

YASL-CK8
Application
Technical Parameters
| Printing Model | ||
|
Konica 512i-4H |
480X360dpi(2 pass) | 120㎡/h |
| 480X450dpi(3pass) | 80㎡/h | |
| 480X720dpi(4pass) | 60㎡/h | |
|
Konica 512i-8H |
480X360dpi(2pass) | 240㎡/h |
| 480X540dpi(3pass) | 160㎡/h | |
| 480X720dpi(4pass) | 120㎡/h | |
| Print Head Quantity | Konica 512i(4/8) Pcs Optional | Media Type | Outdoor Solvent Media (Flex.Vinyl.Leather.Artificial.Leather etc) |
| Printing Width | 3.2m*∞ | Operation Environment | Temperature: 20-30℃ Humidity:60-70％ |
| Printing Thickness | ≦5mm | Power Supply | AC220V 50HZ±10％ |
| G.W/N.W. | 850KG/700KG | Ink | Solvent lnk·M / Y / C / K |
| Image Format | TIFF/JPG/EPS/PDF | Packing Size | 5100mm*750mm*1130mm |
| RIP Software | Maincenter（Standard)/PHOcenterRINT (Optional) | APP Size | 4650mm*980mm*1430mm |
| Power | 3500W | Computerb Configuration | System：Win7/8/10 64bits（Professional/Version） CPU:≥Intel i5 RAM：8GB Hard Disk：SATA500G Hard Disk Format：NTFS CD Rom：DVDRecordable Space for Disk C;100GB at least |
