NEON-3200UV

NEON-3200UV

short description:

Double-sided Asynchronous UV Printer
NEON-3200UV double-sided Printer adopts the mechanical structure of asynchronous movement of two carriages, we have the patent of feeding and take up structure, which can realize the materials’ both sides printing asynchronously, the pattern alignment is very accurate so the production of high-quality light box is easily completed. Our double-sided UV printer can get good printing results and the operation is simple and convenient as well. The patent automatic cleaning system can continue to complete high-quality jobs through only a few steps then can easily complete the printing operation.


Product Detail

Product Tags

Features

Diverse Printheads Permutation Modes

CMYK/CMYK LC LM  Support 6 colors custom solution

Machine Features

1 It's equipped with two carriages of staggered row industrial Konica printhead KM1024i 13pl.

2 The image size parameters can be adjusted freely according to the design requirements. Achieve a variety

of custom application solutions, such as same image same color, same image different color, different image

different color.

3 Two carriages asynchronously print and automatically adjust the distance between the printing media.

Support printing up to ≦2mm soft roll to roll media.

4 Dual constant temperature water-cooled variable frequency air suction platform, synchronously cools the

excess temperature on the surface of printing media to ensure the flatness of printing media.

Product Advantages

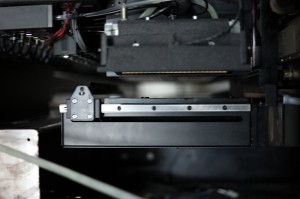

Intelligent differential pressure negative pressure ink supply system

 Intelligent double negative pressure system, automatically adjust the pressure difference, provide more stable ink supply, to ensure the stability of continuous operation of the whole machine。

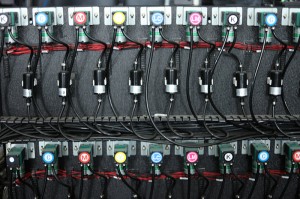

Intelligent nozzle moisturizing device

 Optional nozzle automatic scraping ink, automatic cleaning device. Easy to realize the nozzle maintenance and keep hands not to touch ink.

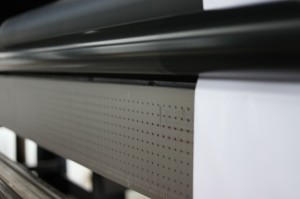

Intelligent constant temperature water-cooled frequency conversion  adsorption platform.

It is suitable for soft materials without wrinkle, no deviation, to ensure the double printing alignment accuracy, the precision of the machine continuous operation platform is maintained 0.1mm, 4 pounds of text is clearer.

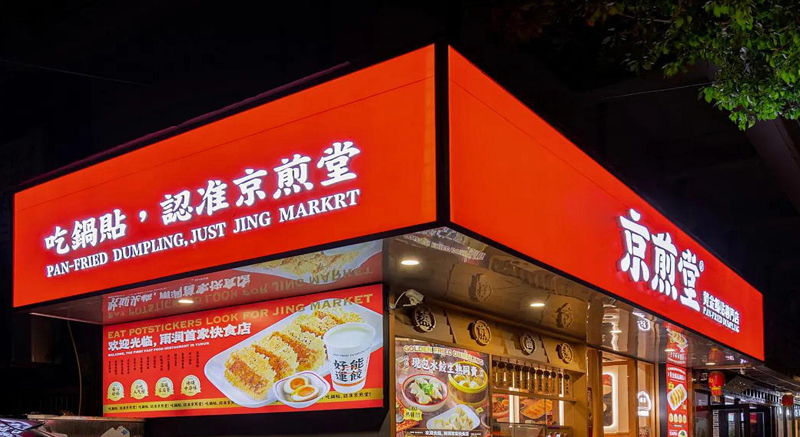

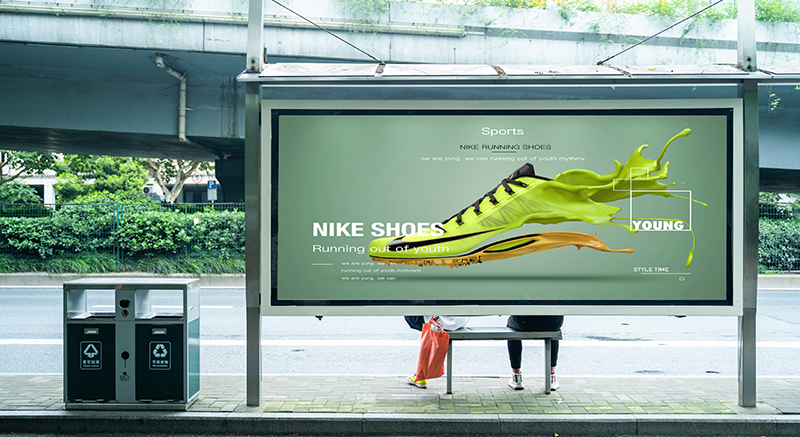

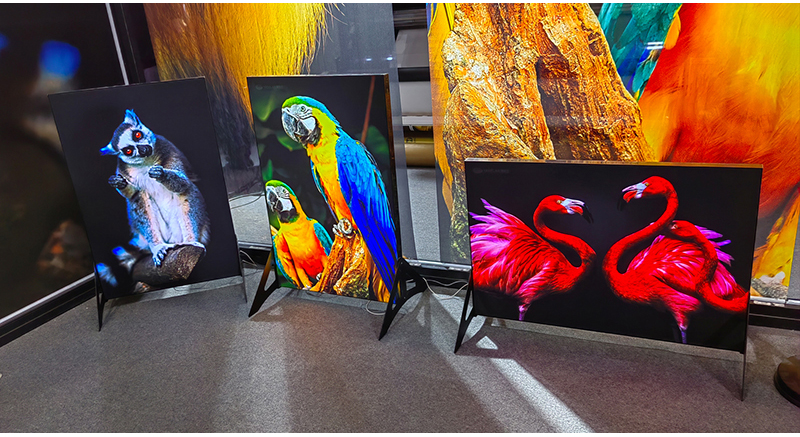

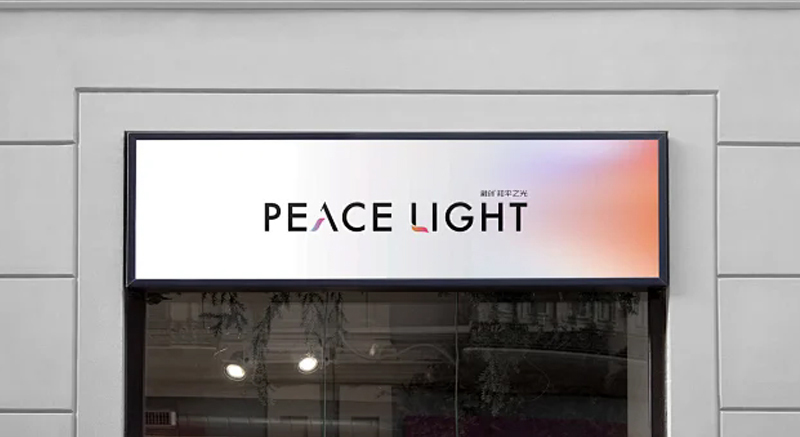

Application


Technical Parameters

Printer Model NEON-3200UV
Printhead KM1024i(12-36H YMCK LC LM)

Printing Speed

Sketch mode

4pass

One group

40㎡/h

two groups

80㎡/h

Three groups

120㎡/h
Production Mode 6pass 30㎡/h 60㎡/h 90㎡/h
High Resolution Mode 8pass 20㎡/h 40㎡/h 60㎡/h
Printhead KM1024i(8-24H YMCK )

Printing Speed



Sketch mode

4pass

One group



40㎡/h

two groups



80㎡/h

Three groups



120㎡/h
Production Mode 6pass 30㎡/h 60㎡/h 90㎡/h
High Resolution Mode 8pass 20㎡/h 40㎡/h 60㎡/h

Ink

Type Imported environment-friendly UV ink (Soft/Neutral)
Color M /Y /C /K /LM /LC
Media Max Diameter 350mm
Printing width 3200mm
Printing Thickness ≦2mm
RIP Software PHOTOPRINT
Image Format TIFF /JPG /EPS /PDF
Operation System Windows7/10 64 bits (Flagship/Professional Version)
Data Transfer TCP /IP network interface /USB
Drying LED-UV lamp curing
Moisture control Patented automatic ink pressing moisturizing cleaning system
Media Type All UV flex banner, coated banner, reflective transfer film, back interlining cloth, PE light box panel
Maximum Power 9KW (Including cooling system power 2KW)
Operation Environment Humidity: 40%-70%  Temperature: 20-30℃
Power Supply AC220V±10%   50HZ
Operation Air Pressure 0.6MPA
N.W 5500kg
Machine Size L*W*H: 6700*2285*2430mm
Package Size L*W*H: 6900*2200*2500mm
Computer Configuration Hard disk: SATA500/Hard disk format: NTFS/CPU: Inter i5/RAM: 8G-16G
