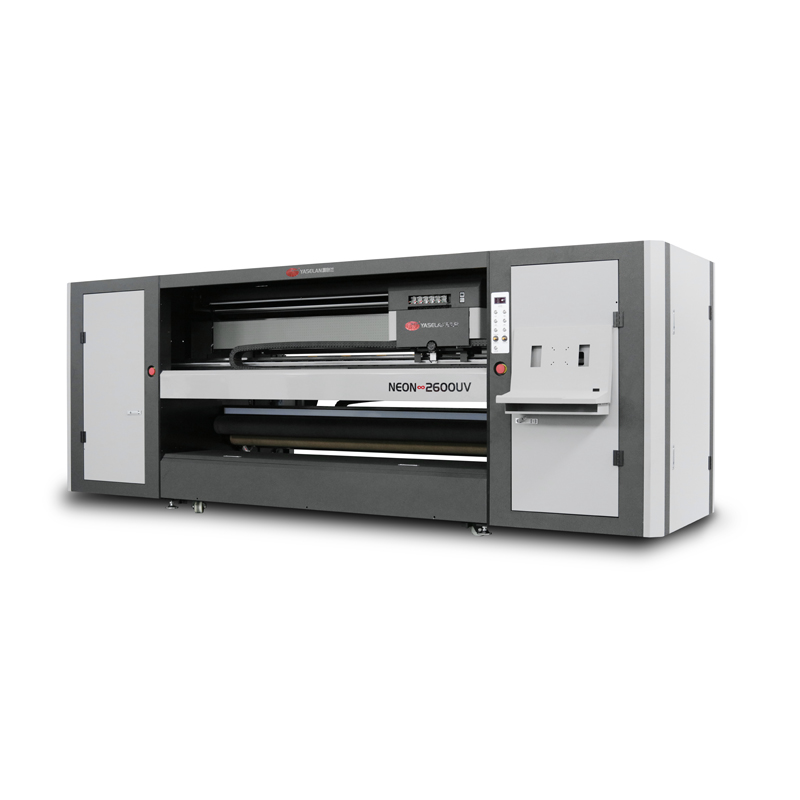

NEON-2600UV
Features
Diverse Printheads Permutation Modes
CMYK/CMYK LC LM Support 6 colors custom solution
Machine Features
1 It's equipped with two carriages of staggered row industrial KM1024i
2 Two carriages with linear motor, enhance the printing speed and make the printing more fluent without noise
3 The space between the host carriage and the slave carriage is only 38cm, easy to load the material.
Match with the tension control system, achieve the accurate alignment
4 The image size parameters can be adjusted freely according to the design requirements. Achieve a variety
of custom application solutions, such as same image same color, same image different color, different image
different color.
5 Two carriages asynchronously print and automatically adjust the distance between the printing media.
Support printing up to ≦2mm soft roll to roll media.
6 Dual constant temperature water-cooled variable frequency air suction platform, synchronously cools the
excess temperature on the surface of printing media to ensure the flatness of printing media
Product Advantages

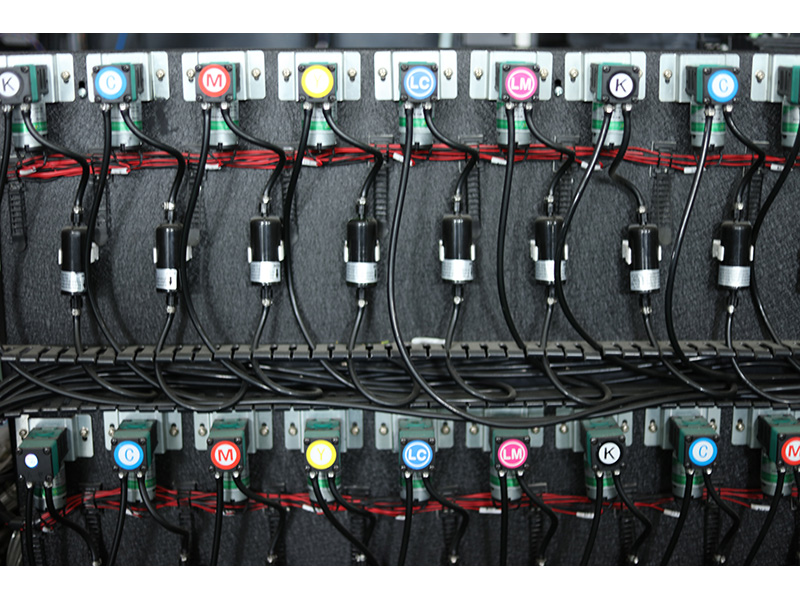

Intelligent differential pressure negative pressure ink supply system
Intelligent single carriage double negative pressure system, to achieve single-row nozzle independent automatic adjustment of pressure difference, provide more stable ink supply, to ensure the stability of continuous operation of the whole machine.

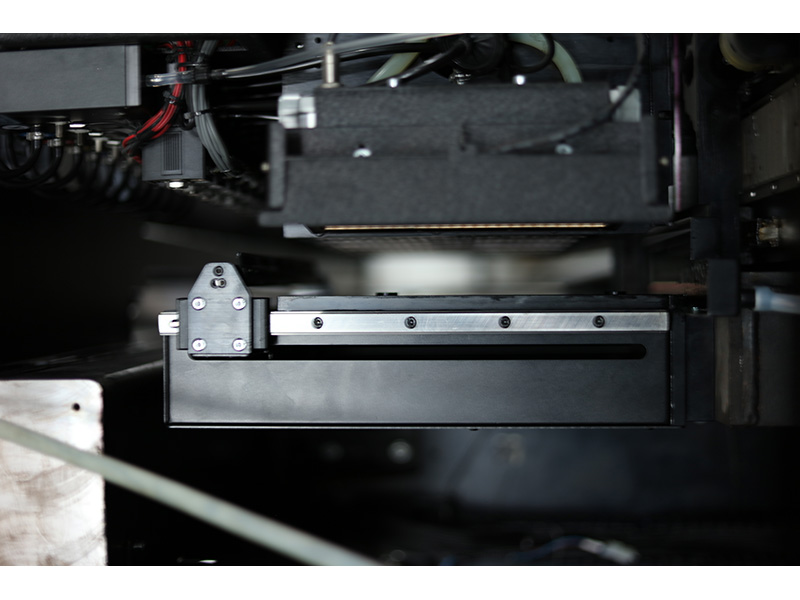

Intelligent nozzle moisturizing device
Automatic moisturizing auxiliary flash spray device with color separation manual ink press device, self-leveling waste ink collection structure, easy to realize nozzle maintenance, hands do not touch ink.

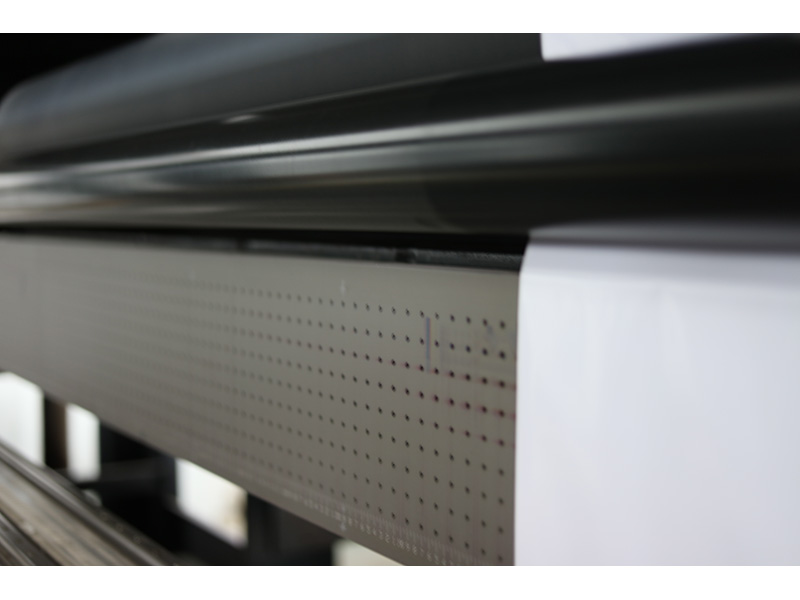

Intelligent constant temperature water-cooled frequency conversion adsorption platform.
The five-way water circulation system maximizes the efficiency of constant temperature cooling of the platform, effectively prevents the deformation caused by high temperature in the printing process of soft materials, and ensures the stability of continuous operation of the whole machine during printing.
Application
Technical Parameters
| Printer Model |
NEON-2600UV |
Image Format | TIFF /JPG /EPS /PDF | |||||
| Printhead |
KM1024i(8-16H CMYK) |
Operation System | Windows7/10 64 bits (Flagship/Professional Version) | |||||
| Printing Speed | Sketch mode |
4pass |
onegroup | 40㎡/h | two group | 80㎡/h | Computer Configuration | Hard disk: SATA500/Hard disk format: NTFS/CPU: Inter i5/RAM: 8G-16G |
| Production Mode | 6pass | 30㎡/h | 60㎡/h | Drying | LED-UV lamp curing | |||
| High Resolution Mode | 8pass | 20㎡/h | 40㎡/h | Moisture control | Patented automatic ink pressing moisturizing cleaning system | |||
| Printhead | KM1024i(12-24H CMYK LC LM) | Media Type | All UV flex banner, coated banner, reflective transfer film, back interlining cloth, PE light box panel | |||||
| Printing Speed
|
Sketch mode |
4pass |
one group | 40㎡/h | two group | 80㎡/h | Maximum Power | 7KW (Including cooling system power 2KW) |
| Production Mode | 6pass | 30㎡/h | 60㎡/h | Operation Environment | Humidity: 40%-70% Temperature: 20-30℃ | |||
| High Resolution Mode | 8pass | 20㎡/h | 40㎡/h | Power Supply | AC220V±10% 50HZ | |||
| Ink | Type | Imported environment-friendly UV ink (Soft/Neutral) | Operation Air Pressure | 0.6MPA | ||||
| Color | M /Y /C /K /LM /LC | N.W | 3000kg | |||||
| Media Max Diameter | 360mm | Machine Size | L*W*H: 4930*2000*1850mm | |||||
| Printing width | 2600mm | Package Size | L*W*H: 5200*1850*2250mm | |||||
| Printing Thickness | 2mm | Data Transfer | USB3.0 | |||||
| RIP Software | PHOTOPRINT | |||||||
