KT-XJ10

KT-XJ10

KT-XJ10 Featured Image
  • KT-XJ10

short description:

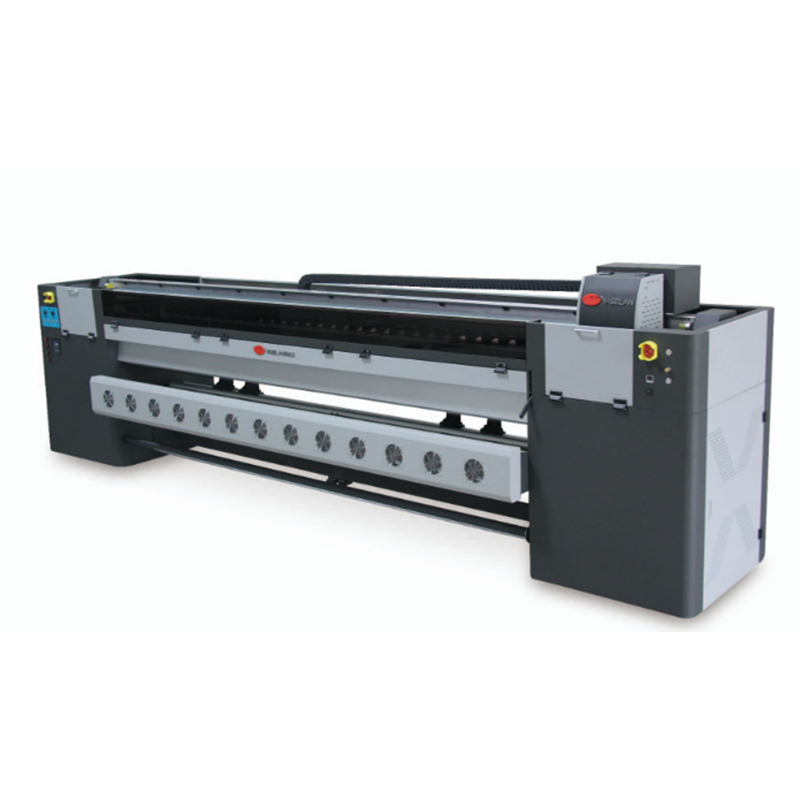

Classic and stable solvent printer with Konica 512i, 1024i or Ricoh Gen5/GEN6 printheads. Aluminum beam, Fuji motor, Italy Megadyne belt, THK mute sliders, and it’s equipped with intelligent infrared heating system, the image can dry in time. With the automatic feeding system and 2 sets of feeding systems. With Unique ink stack printheads protecting device. Head plate, front-printing platform-rear heating. And the printheads anti-collision system effectively prevents head damaged during printing.

Product Detail

Product Tags

Application

1
2
5
3
4

Technical Parameters

Printing Mode One Group Two Group Three Group Print Head Quantity Ricoh GEN5(4/6) Pcs Optional/Konica1024i(4/6) Pcs Optional Konica 512i(4/6) Pcs Optional
RicohGEN5 720X600dpi(4 pass) 20㎡/h 40㎡/h 60㎡/h Printing Width 3.2m*∞
720X900dpi(6pass) 15㎡/h 30㎡/h 40㎡/h Printing Thickness ≦5mm
720X1200dpi(8pass) 10㎡/h 20㎡/h 30㎡/h G.W/N.W. 1300kg/1100kg
Konica1024i 360X360dpi(1pass) 250㎡/h 500㎡/h N/A Image Format TIFF/JPG/EPS/PDF
360X720dpi(2pass) 150㎡/h 260㎡/h N/A RIP Software Maincenter(Standard)/PHOcenterRINT(Optional)
360X1080dpi(3pass) 120㎡/h 130㎡/h N/A Power 5000W
Konica512i 360X360dpi(2pass) 80㎡/h 160㎡/h N/A Media Type Outdoor Solvent Media (Wallpaper, Flex，Vinyl，Leather，Artificial Leather etc)
360X480dpi(3pass) 60㎡/h 120㎡/h N/A Operation Environment Temperature: 20-30℃  Humidity:60-70％
480X540dpi(3pass) 40㎡/h 80㎡/h N/A Power Supply AC220V 50HZ±10％
ComputerConfiguration System：Win7/8/10 64bits（Professional/Version）CPU:≥Intel i5 RAM：8GB Hard Disk：SATA500G Hard Disk Format：NTFS CD Rom：DVD Recordable Space for Disk C;100GB at least Ink Solvent Ink/UV Ink·M / Y / C / K / LC/LM/W/V
Packing Size/APP Size 5250mm*1120mm*1710mm / 5046mm*1200mm*1580mm
