KT-X9

KT-X9

KT-X9 Featured Image
  • KT-X9

short description:

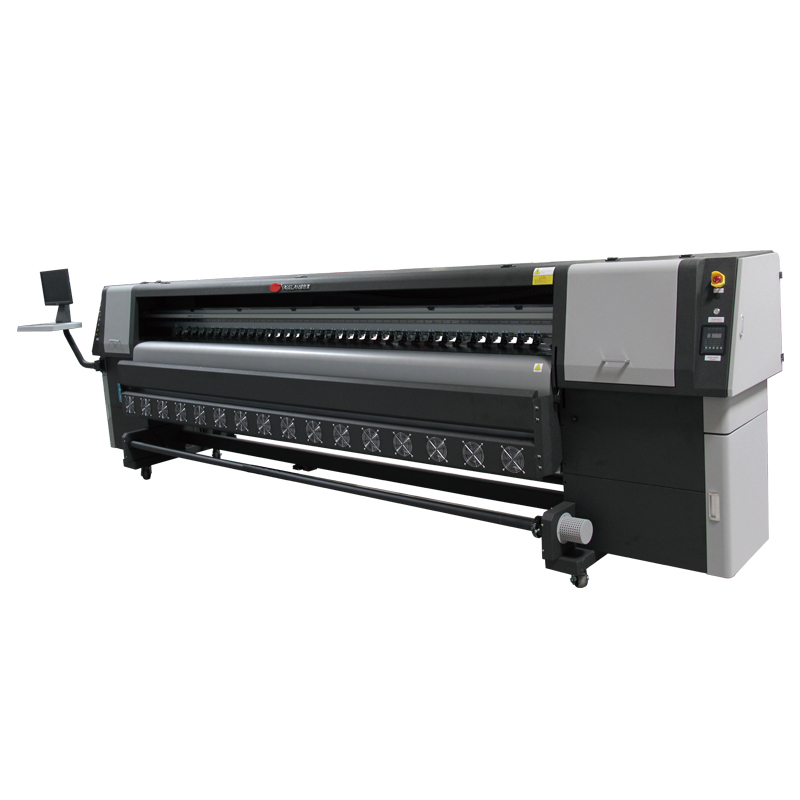

Classic and stable solvent printer with Konica 512i printheads. Aluminum beam, Fuji motor, Italy Megadyne belt, THK mute sliders, and it’s equipped with intelligent infrared heating system, the image can dry in time. With the automatic feeding system. With Unique ink stack printheads protecting device. Head plate, front-printing platform-rear heating. And the printheads anti-collision system effectively prevents head damaged during printing.

Product Detail

Product Tags

Application

1
2
5
3
4

Technical Parameters

    4H 8H

Konica 512 i

 360x360dpi(2pass) 140㎡/h 280㎡/h N/A
360x360dpi(3pass) 90㎡/h 180㎡/h N/A
480x360dpi(2pass) 120㎡/h 240㎡/h N/A
480x540dpi(3pass) 70㎡/h 140㎡/h N/A
Printer model KT-X9 Media Type Outdoor Solvent/Eco-solvent Roll media(Flex, Vinyl etc.)
Head Konica512i (4H / 8H) Operation Environment Humidity : 40%-70%  Temperature: 20-30℃
Printing Width 3200mm*∞ Power Supply AC220V±10%   50HZ   4000W
Printing Thickness ≦2mm Moisturize System Independent Press ink moisturize
Drying system Double infrared heating/ Infrared heating + Cooling Ink Type Solvent Ink  M / Y / C / K
Image Format TIFF /JPG /EPS /PDF Power 4000W
RIP Software Maincenter / PHOcenterRINT N.W/G.W 850kg / 1000kg
Operation System Windows7 /10  64bits Machine body Size L*W*H: 5046*1200*1580mm
Computer  Configuration Hard Disk：SATA500/NTFS/CPU:Inter i5+/Memory：8G-16G Packing Size L*W*H: 5160*1090*1560mm
