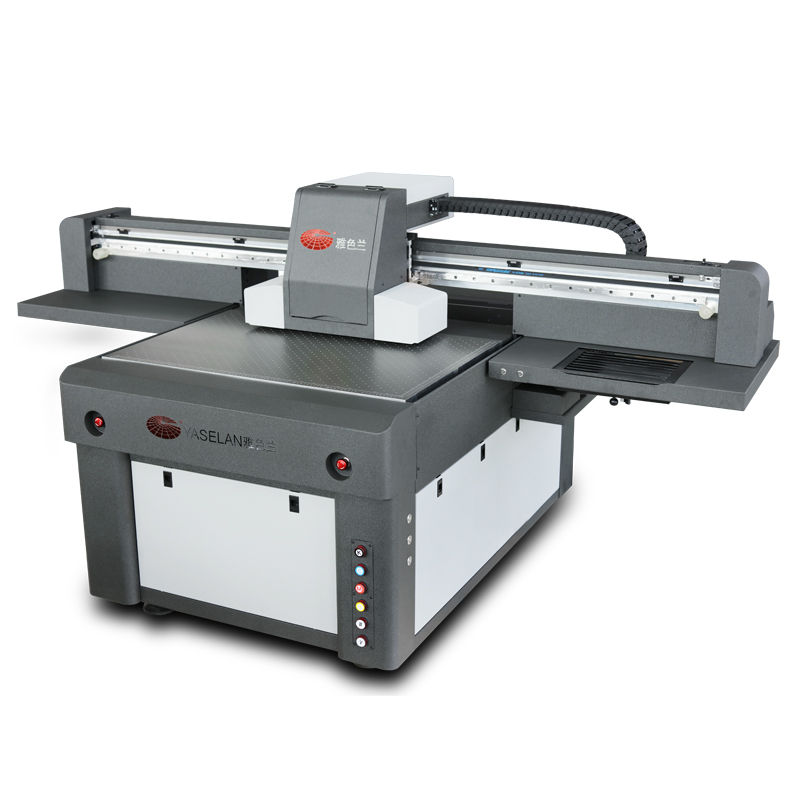

KT-9060-AI

short description:

The world’s first company applies to the visual positioning printing on UV flatbed printer.

YASELAN Focused on the development of full-frame Ai visual positioning in the digital printing industry and completed the application of UV flatbed printer with full-frame Ai visual positioning system in the special field. Linear scanning positioning system is the second generation of Yaselan Ai visual system. They are suitable for printing all kinds of ornaments and small crafts. It’s very easy to operate save time and labor.

Send email to us

Product Detail

VIDEO

Product Tags

Features

Diverse Printheads Permutation Modes

CMYK/CMYK+W+V/CMYK LC LM+W+V+L Support 8 spot colors-CMYK+W+CMYK/2 Rows/3 Rows CMYK custom solutions

Machine Features

1.Head plate can be arranged in 3 rows (Ricoh G5i/GH2220), support faster printing and more application solution

2.42.5mm aeronautical aluminum printing platform, which surface is treated with hard oxidation. High hardness and corrosion resistance. The square bearing weight 70 kilograms.

3.Automatic lifting of carriage and automatic height measurement with mechanical probe. Support up to 120mm (vision40mm)thickness print media.

Product Advantages

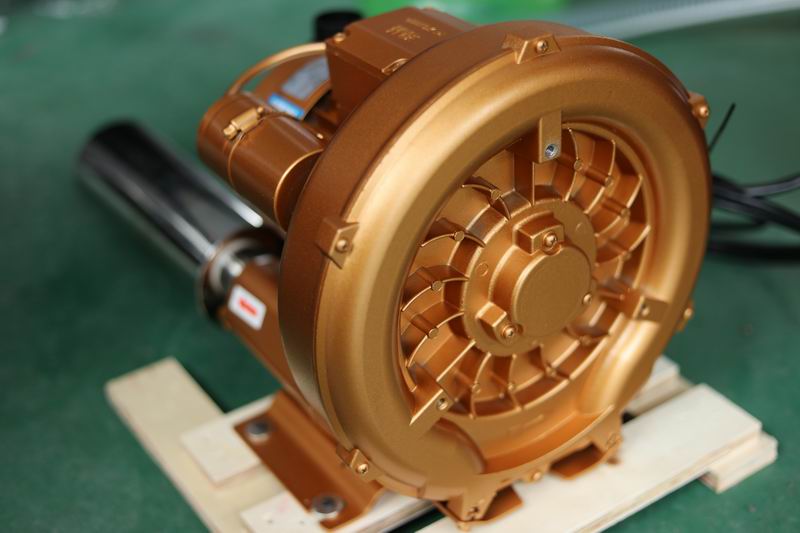

High strength turbo blower

Provide stronger adsorption force for the printing platform, improve the printing quality at the same time, greatly reduce the risk of scratching the nozzles.

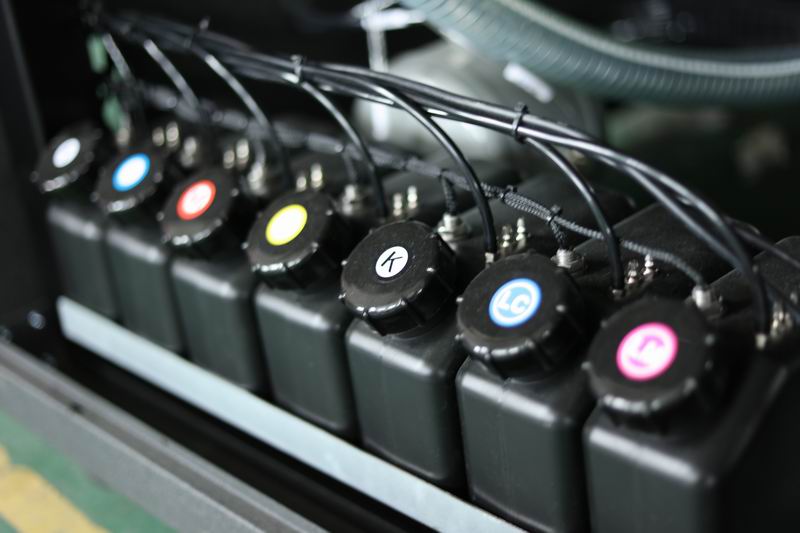

Large capacity ink supply tank

Clear partition, reduce the adding ink times, ensure the flow of ink supply

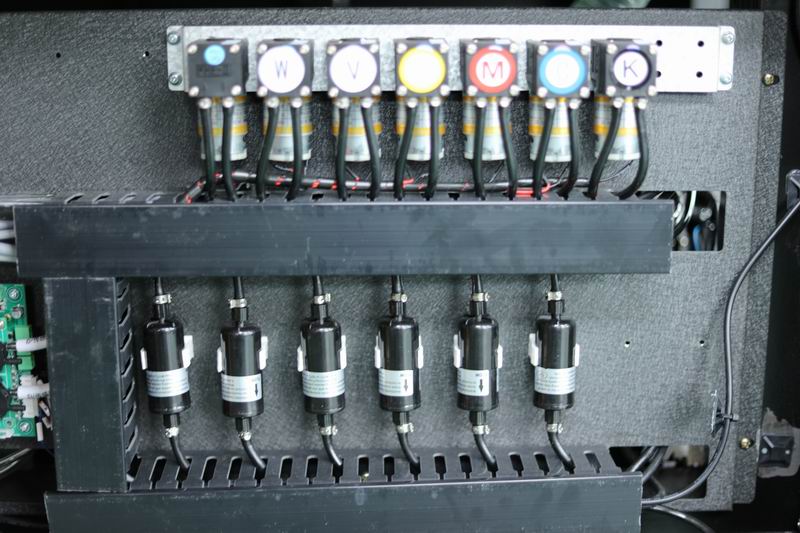

Ink supply system

The brand new ink system design, combined with intelligent negative pressure ink suction system, filters out impurities from the first process, providing one more stable ink supply

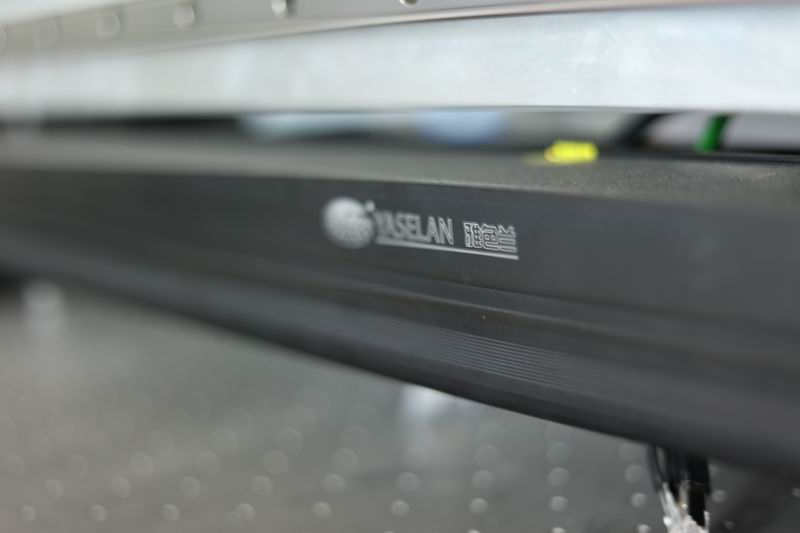

Linear array visual module

Advanced linear array visual module can accurately identify the irregular medium materials, place them randomly without typesetting, and accurately match material patterns with matching accuracy less than 0.15mm.

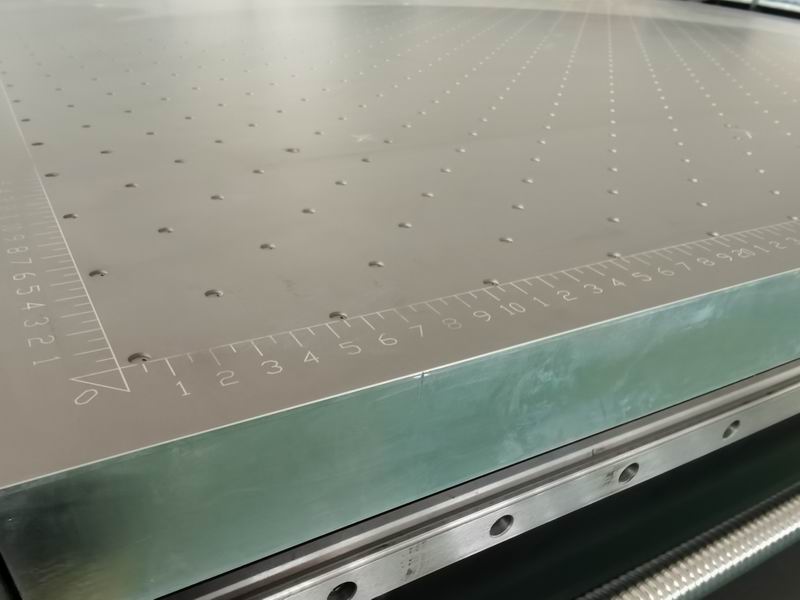

Hard oxidation adsorption platform

Carbon alloy honeycomb suction, surface hardening treatment, absorption UV light does not reflect protection nozzle, not easy to scratch, XY two-way scale convenient operation, printing platform XY two-way pneumatic zero limit, it can feeding accurately, equipped with 2.2 kW suction turbine, four electronic partition control, no need manual switch valve, ensure the adsorption of materials on the platform.

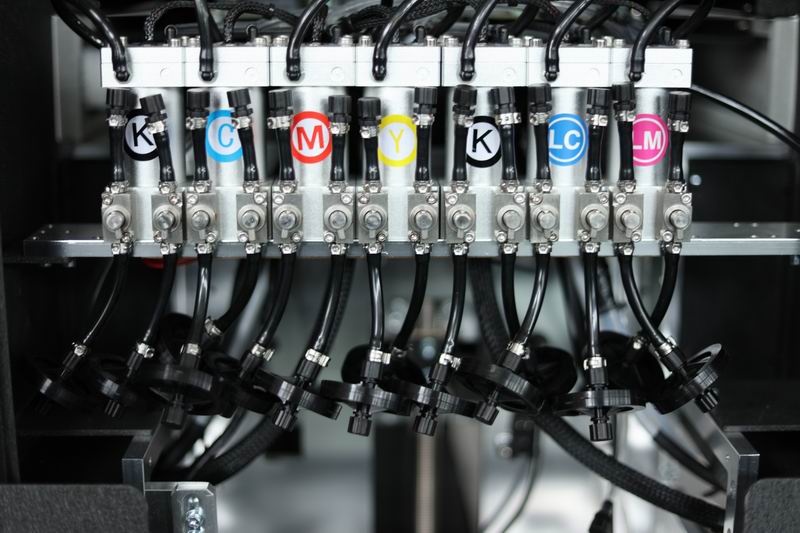

Multi-color combination negative pressure ink tank

According to different requirements of the printing scheme, equipped with the negative pressure ink tank collocation scheme of multi-color combination mode. Due to the different viscosity of white ink and color ink, provide two groups of negative pressure device with different pressure, to maintain the smooth work of white and color at the same time.

Application

Technical Parameters

Printer Model		KT-9060-AI			Operation System	Windows7/10 64 bits (Flagship/Professional Version)
Printhead		Ricoh G5i (1-6) / GH2220 (2-8)			Drying System	LED-UV lamp curing
Printing Speed	High Resolution Mode	8Pass	5㎡/h Group	9㎡/h Group	Media Type	All advertising, decoration materials, metal plate, glasses wood material, plastic etc
	Production Mode	6Pass	7㎡/h	12㎡/h	Maximum Power	3000W (Including suction fan power 750W)
	Sketch Mode	4Pass	10㎡/h	16㎡/h	Operation Environment	Humidity: 40%-70% Temperature: 20-30℃
Ink	Type	Imported environment-friendly UV ink (Soft/Neutral/Hard)			Power Supply	AC220V±10% 50H 3KW
	Color	M /Y /C /K /White /Varnish			N.W	600kg/700kg
Printing Area		900mm x 600mm			Machine Size	LWH: 254016551240mm
Printing Thickness		120mm(vision40mm)			Package Size	LWH: 265017501600mm
RIP Software		PHOcenterRINT			AI Visual Positioning (Optional)	Full-frame Ai visual positioning printing system
Image Format		TIFF /JPG /EPS /PDF			Computer Configuration	CPU：i7-10700above Memory：32GB Hard disk：SSD512GB+1TBMechanical hard disk
Data Transfer		Gigabit network Port / USB
