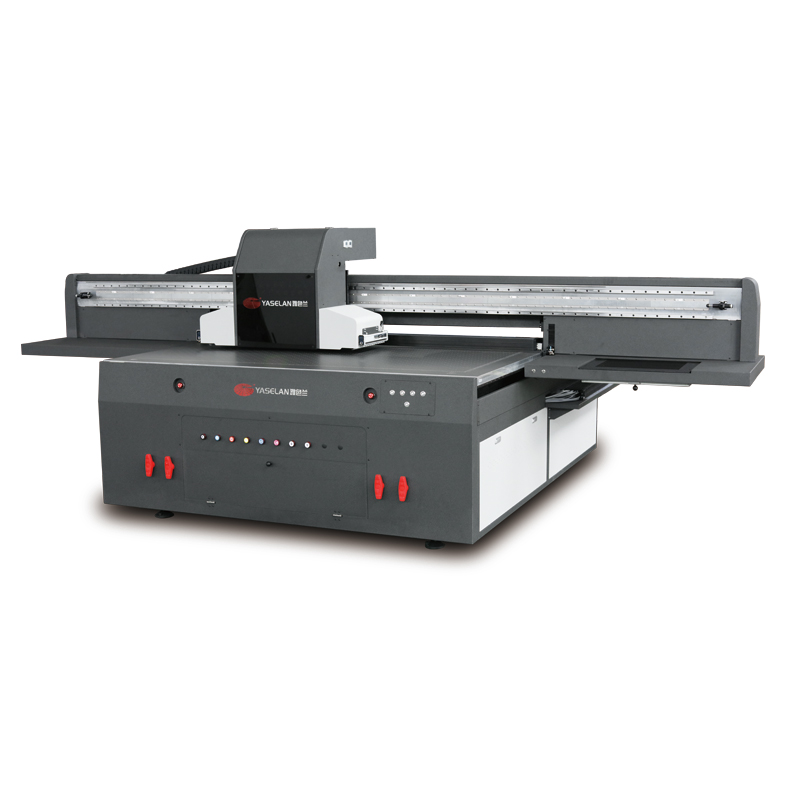

KT-1812 With Linear Motor
Features
Diverse Printheads Permutation Modes
CMYK/CMYK+W+V/CMYK LC LM+W+V Support 8 spot colors-CMYK+W+CMYK/2 Rows/3 Rows CMYK custom solutions
Machine Features
1 Head plate can be arranged in 3 rows G6(2-9), support faster printing and more application solution
2 42.5mm aeronautical aluminum printing platform, which surface is treated with hard oxidation. High hardness and corrosion resistance. The square bearing weight 70 kilograms.
3 Automatic lifting of carriage and automatic height measurement with mechanical probe. Support up to 125mm thickness print media.
Product Advantages

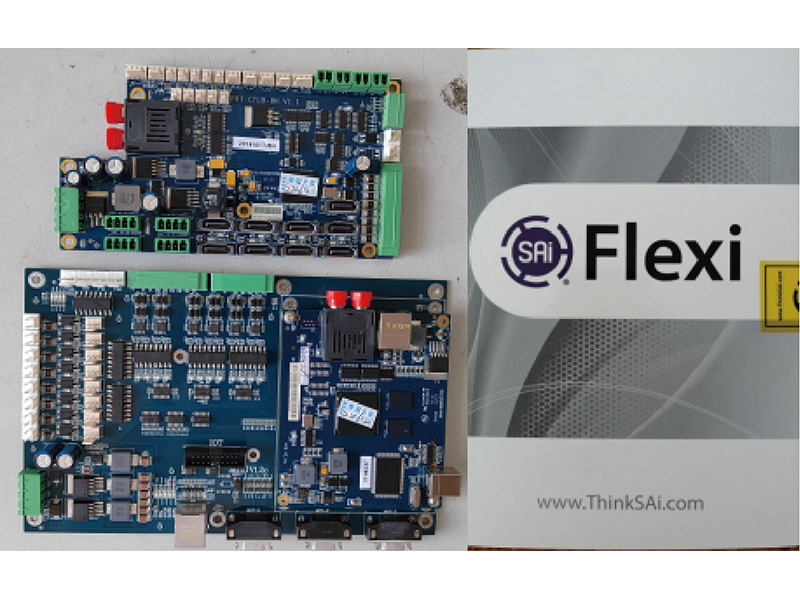

Printing control system and RIP software
It installed UMC printing control system which is the most stable ink jet printing control and printer hardware control. It matched USA PHOTOPRINT RIP software that made image more colorful, input image compared with real image attached over 98%.

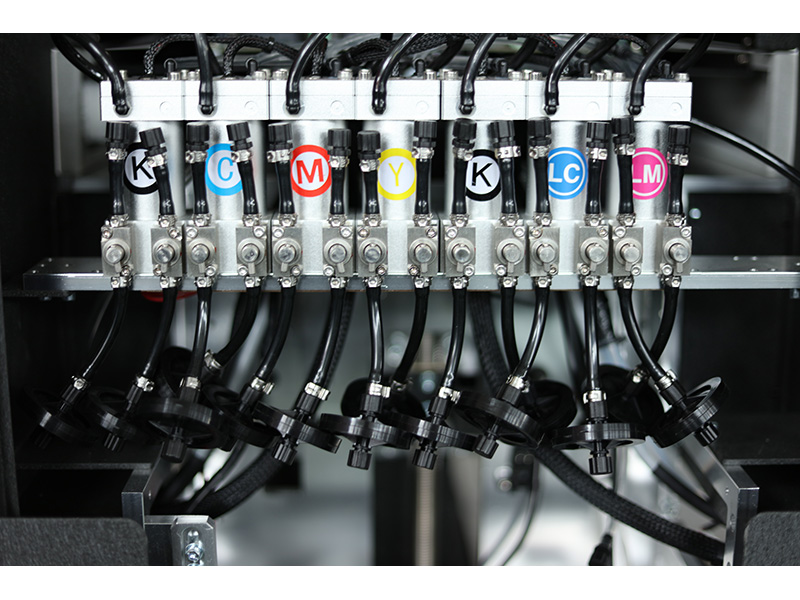

Sub ink tank
Anti-corrosion and heating & circulatory function ensure ink temperature meets its requirement, when at low temperature environment won’t influence ink smooth and printing effect.

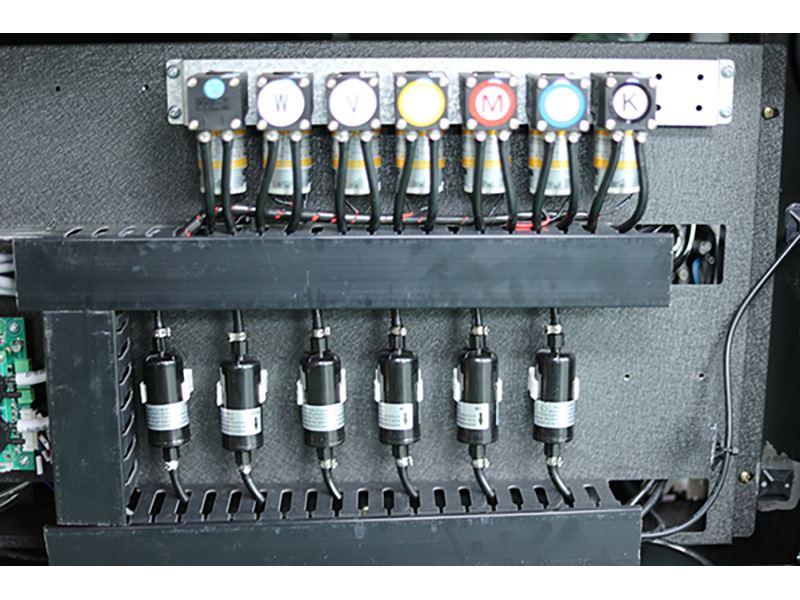

Ink supply system
The brand new ink system design, combined with intelligent negative pressure ink suction system, filters out impurities from the first process, providing one more stable ink supply

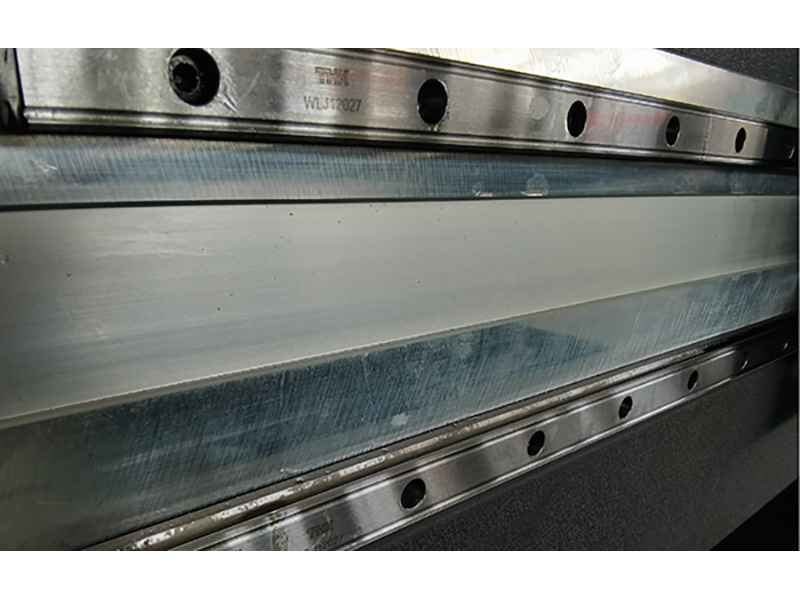

Japan THK mute guide rail
X printing direction with two THK mute guide rail, high resolution, lower noise, stand wear and tear so that ensure carriage moving stable. Z axle with double guide rail to ensure carriage lift balance.

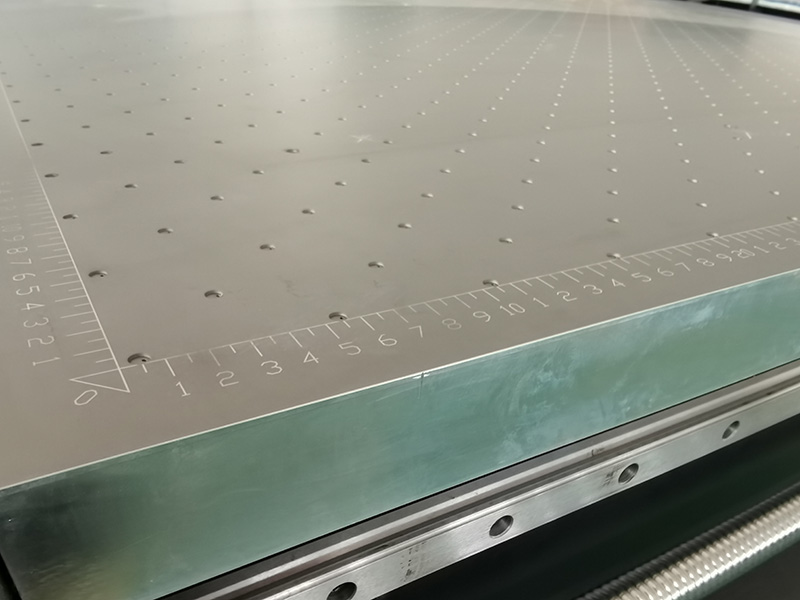

Hard oxidation adsorption platform
Carbon alloy honeycomb suction, surface hardening treatment, absorption UV light does not reflect protection nozzle, not easy to scratch, X\Y two-way scale convenient operation, printing platform X\Y two-way pneumatic zero limit, it can feeding accurately, equipped with 2.2 kW suction turbine, four electronic partition control, no need manual switch valve, ensure the adsorption of materials on the platform.

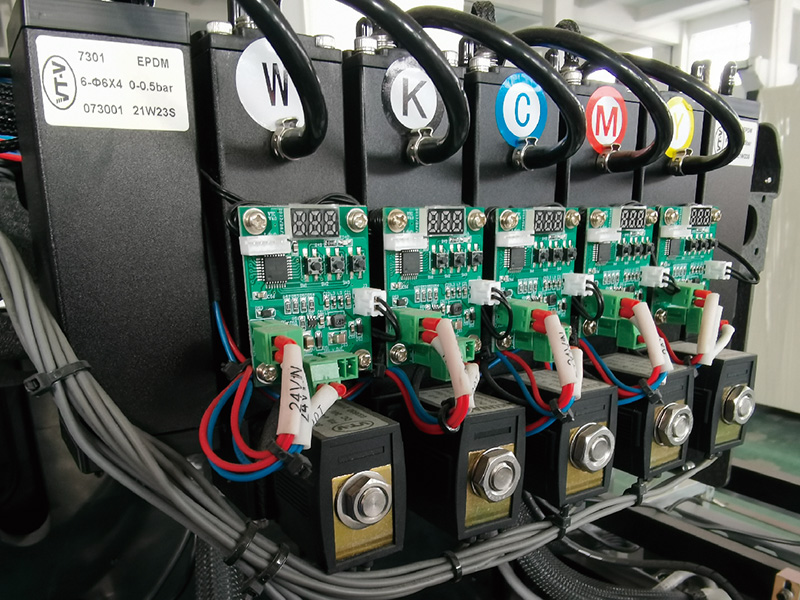

Multi-color combination negative pressure ink tank
According to different requirements of the printing scheme, equipped with the negative pressure ink tank collocation scheme of multi-color combination mode. Due to the different viscosity of white ink and color ink, provide two groups of negative pressure device with different pressure, to maintain the smooth work of white and color at the same time.
Application
Technical Parameters
|
Printer Model |
KT-1812 |
Operation System | Windows7/10 64 bits (Flagship/Professional Version) | ||
| Printhead |
Ricoh G6 (2-9) |
Drying System | LED-UV lamp curing | ||
|
Printing Speed |
High Resolution Mode |
8Pass |
11㎡/h |
Media Type | All advertising, decoration materials, metal plate, glasseswood material, plastic etc |
| Production Mode |
6Pass |
18㎡/h |
Maximum Power | 7000W (Including suction fan power3000W) | |
| Sketch Mode |
4Pass |
22㎡/h |
Operation Environment | Humidity: 40%-70% Temperature: 20-30℃ | |
| Ink | Type | Imported environment-friendly UV ink (Soft/Neutral/Hard) | Power Supply | AC220V±10% 50H 7KW | |
| Color | M / Y / C / K / LM / LC / White / Varnish | N.W | 1200kg | ||
| Printing Area | 1800mm x 1200mm | Machine Size | L*W*H: 4250*2370*1538mm | ||
| Printing Thickness | 125mm | Package Size | L*W*H: 4370*2447*1838mm | ||
| RIP Software | PHOTOPRINT | AI Visual Positioning (Optional) | Full-frame Ai visual positioning printing system | ||
| Image Format | TIFF /JPG /EPS /PDF | Computer Configuration | CPU：i7-10700above Memory：32GBHard disk：SSD512GB+1TBMechanical hard disk
|
||
| Data Transfer | YCP /IP Network Interface | ||||
