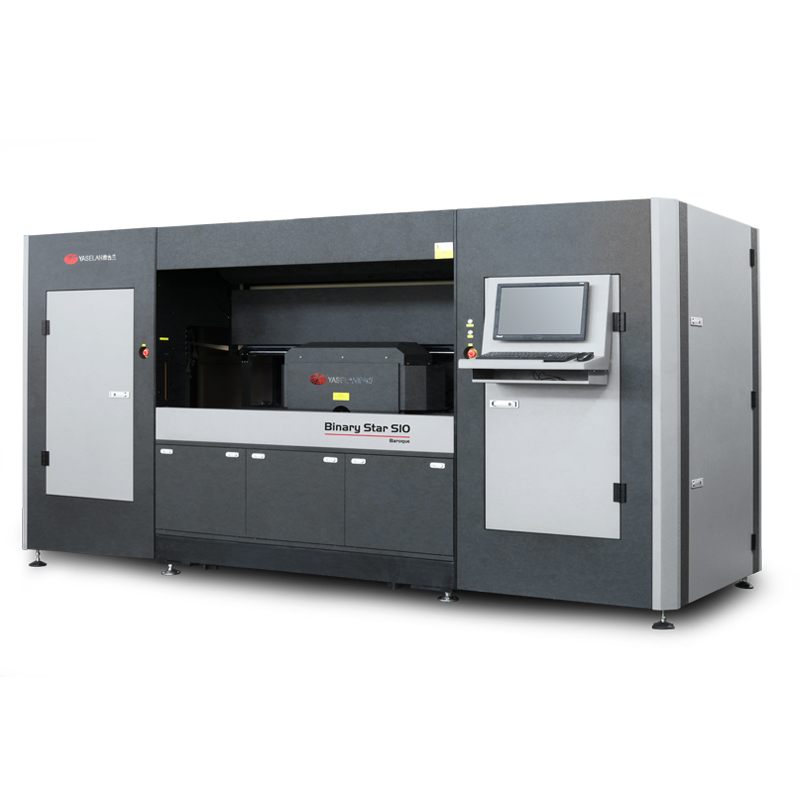

Binary Star S10

Binary Star S10

short description:

Binary Star S10 double-sided Printer adopts the mechanical structure of synchronous vertical parallel movement of two carriages, we have the patent of feeding and take up structure, which can realize the materials’ both sides printing at the same time, the pattern alignment is very accurate so the production of high-quality orders is easily completed. The biggest advantage of this double-sided printer is the customization of differentiated programs, which can perfectly realize the application of different programs such as “ Same image same color; Same image different color; Different image different color ”. To achieve the best color saturation and finished product effect of the materials through the control of ink volume on both sides. Our double-sided printer can get good printing results and the operation is simple and convenient as well. The patent automatic cleaning system can continue to complete high-quality jobs through only a few steps then can easily complete the printing operation.


Product Detail

Product Tags

Features

Diverse Printheads Permutation Modes

C M Y K /C M Y K LC LM O B (FM,FY) Support 8 spot colors custom solution

Machine Features

1.Double-sided staggered printheads arrangement Ricoh (GEN6) or Epson printhead (i3200-A1) Support high speed printing.

2.The image size parameters can be adjusted freely according to the design requirements. Achieve a variety of custom application solutions, such as same image same color, same image different color, different image different color.

3.Automatic moisturizing ink purge control system, X-Y-Z axles synchronized driving. The automatic ink cleaning system can effectively solve the splashed ink generated during printing.

4.Two carriages synchronously print and automatically adjust the distance between the printing media. Support printing up to 2mm soft roll to roll media.

Application

1
3
2
4

Technical Parameters

Printer Model

S10

Data Transfer TCP/IP network interface /USB

Printhead

Ricoh GEN6 (8-16)

Epson i3200-A1 (4-8)

Operation System Windows7/10 64 bits (Flagship/Professional Version)

Printing Speed

Sketch Mode

635x600

80㎡/h

635x600

50㎡/h

Computer Configuration Hard disk: SATA500/Hard disk format: NTFS/CPU: Inter i5/RAM: 8G-16G
Production Mode

635x900

55㎡/h

635x900

40㎡/h

Drying System Synchronous drying before and after printing, the temperature can be

adjusted according to different fabrics.

High Resolution Mode

635x1200

40㎡/h

635x1200

30㎡/h

Ink Purge Control System Automatic printhead cleaning, ink scraping and moisturizing

system by patent

Ink

Type Special: Active ink, Acidic ink, Disperse direct printing ink,Pigment ink Media Type

Textile fabrics for animal and plant proteins, chemical fiber,cotton,

silk etc

Color

M / Y / C / K / LM / LC (O, B ,FM,FY,optional)

Maximum Power 22KW (Including heating system power20KW)
Media Max Diameter 350mm(Customizable) Operation Environment Humidity: 40%-70%  Temperature: 20-30℃
Printing Width

1600mm

Power Supply AC380V±10%
Printing Thickness

≦3mm

N.W 1400kg
RIP Software

Maincenter/ PrintFactory/ NeoStampa

Machine Size L*W*H: 3890*1738*1977mm
Image Format

TIFF / JPG / EPS / PDF

Package Size L*W*H: 4090*1768*2270mm
