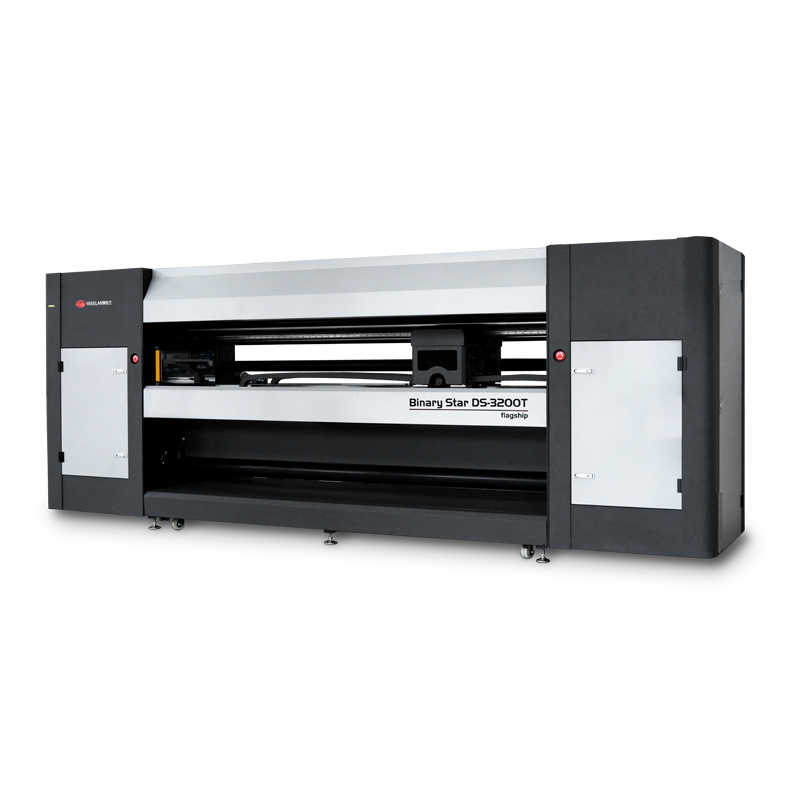

Binary Star DS-3200T

short description:

Binary Star DS-3200T double-sided Printer adopts the mechanical structure of synchronous vertical parallel movement of two carriages, we have the patent of feeding and take up structure, which can realize the materials’ both sides printing at the same time, the pattern alignment is very accurate so the production of high-quality orders is easily completed. The biggest advantage of this double-sided printer is the customization of differentiated programs, which can perfectly realize the application of different programs such as “ Same image same color; Same image different color; Different image different color ”. To achieve the best color saturation and finished product effect of the materials through the control of ink volume on both sides. Our double-sided printer can get good printing results and the operation is simple and convenient as well. The patent automatic cleaning system can continue to complete high-quality jobs through only a few steps then can easily complete the printing operation.

Send email to us

Product Detail

VIDEO

Product Tags

Features

Diverse Printheads Permutation Modes

C M Y K /C M Y K LC LM /C M Y K LC LM O B (FM, FY) Support 8 spot colors custom solution

Machine Features

1.Double side staggered Epson Printhead (i3200-A1). Support high speed printing.

2.The image size parameters can be adjusted freely according to the design requirements. Achieve a variety of custom application solutions, such as same image same color, same image different color, different image different color.

3.Automatic moisturizing ink purge control system, X-Y-Z axles synchronized driving. The automatic ink cleaning system can effectively solve the splashed ink generated during printing.

4.Two carriages synchronously print and automatically adjust the roll to roll media.

Product Advantages

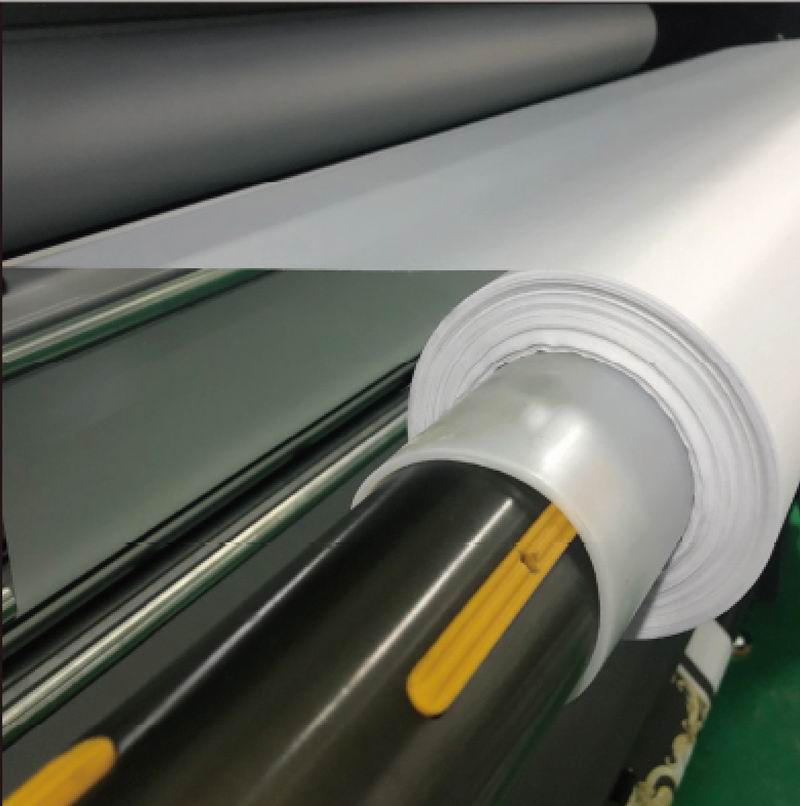

Feeding and takeup system

Use constant tension feeding and takeup system of textile equipment, magnetic powder controls feeding and takeup,110mm double rubber covered rollers feeding cloth, can be adjusted freely according to the thickness and tension of the material.

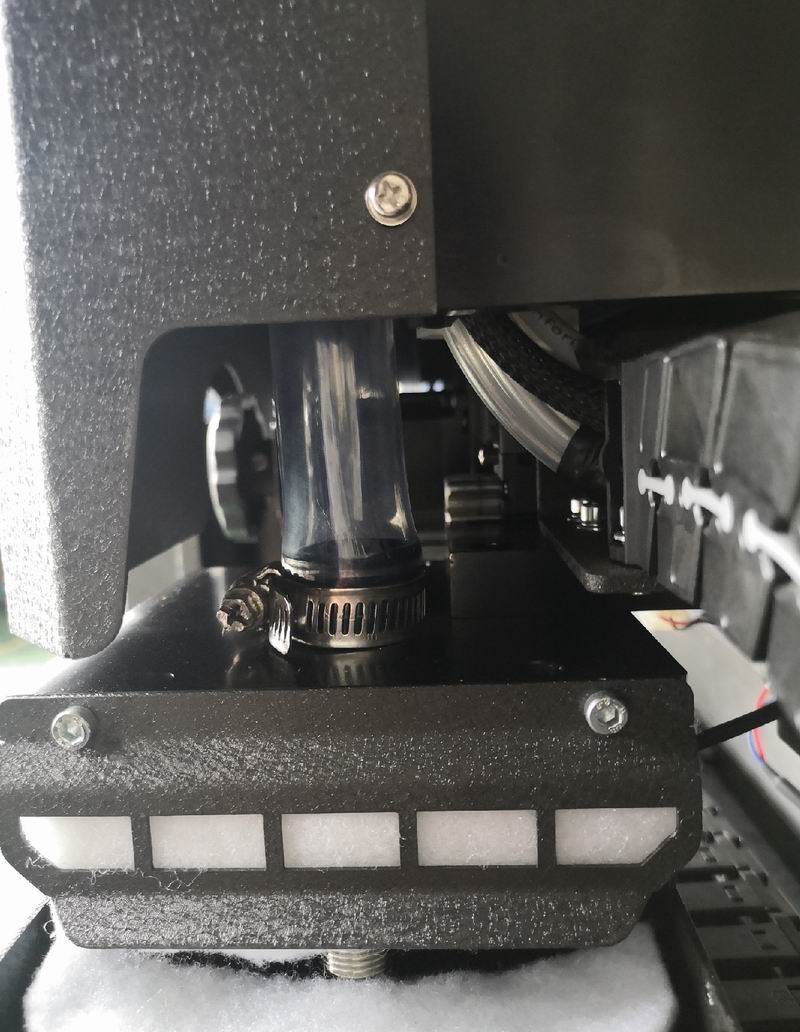

Crashproof Devices

Double directions total 4pcs crashproof devices for 2 carriages,well protect the nozzles.

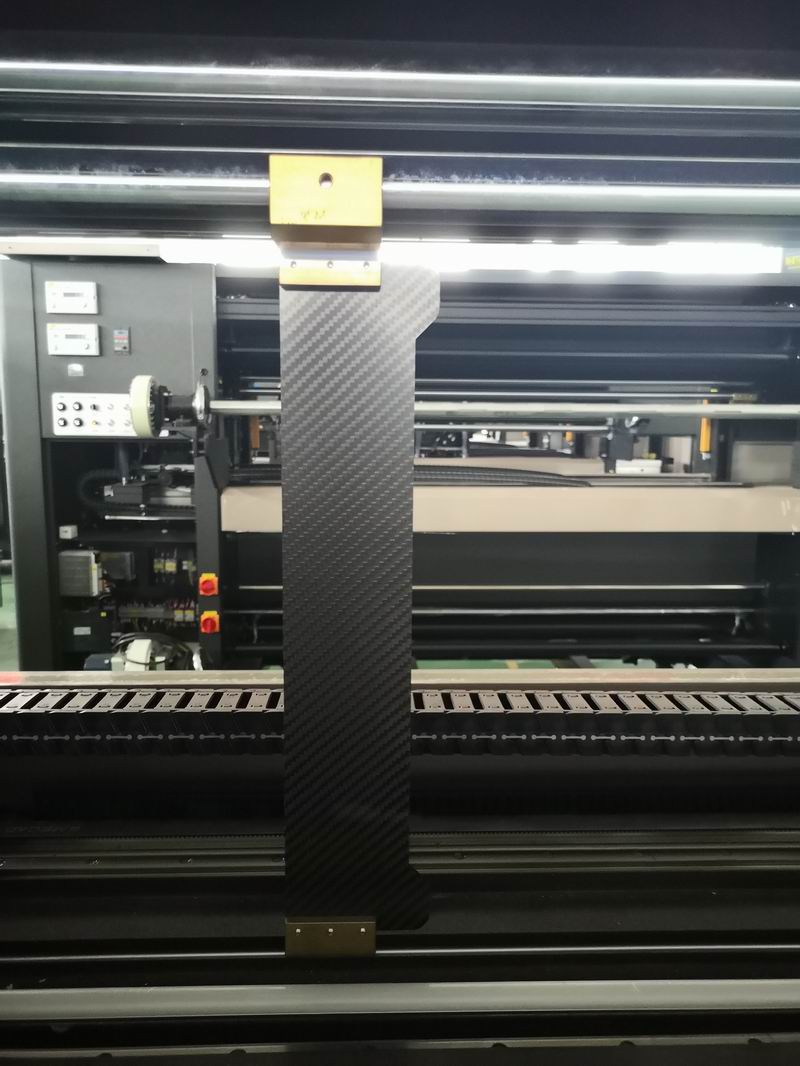

Clamp design

Some printing materials have the problem of edge rough or curling. When printing these materials, it is necessary to install the clamp device. Adapt to more materials printing.

Application

Technical Parameters

Printer Model		DS-3200T		Data Transfer	TCP/IP network interface /USB
Printhead		Epson i3200-A1 (8H)		Operation System	Windows7/10 64 bits (Flagship/Professional Version)
Printing Speed	High Resolution Mode	4pass	75㎡/h	Computer Configuration	Hard disk: SATA500/Hard disk format: NTFS/CPU: Inter i5/RAM: 8G-16G
	Production Mode	3pass	95㎡/h	Drying System	Synchronous drying before and after printing, the temperature can be adjusted according to different fabrics.
	Sketch Mode	2pass	115㎡/h	Ink Purge Control System	Automatic printhead cleaning, ink scraping and moisturizing system by patent
Ink	Type	Special: Active ink, Acidic ink, Disperse direct printing ink		Media Type	Chemical fiber, Banner cloth, light box cloth etc
	Color	M / Y / C / K / LM / LC (O, B optional,FM,FY)		Maximum Power	11KW (Including heating system power 9KW)
Media Max Diameter		350mm		Operation Environment	Humidity: 40%-70% Temperature:20-30℃
Printing Width		3150mm		Power Supply	AC220V±10% 50HZ
Printing Thickness		≦3mm		N.W	3000kg
RIP Software		Maincenter/PrintFactory/Neostampa		Machine Size	*LWH: 569515682170mm*
Image Format		TIFF / JPG / EPS / PDF		Package Size	LWH: 580018002500mm
