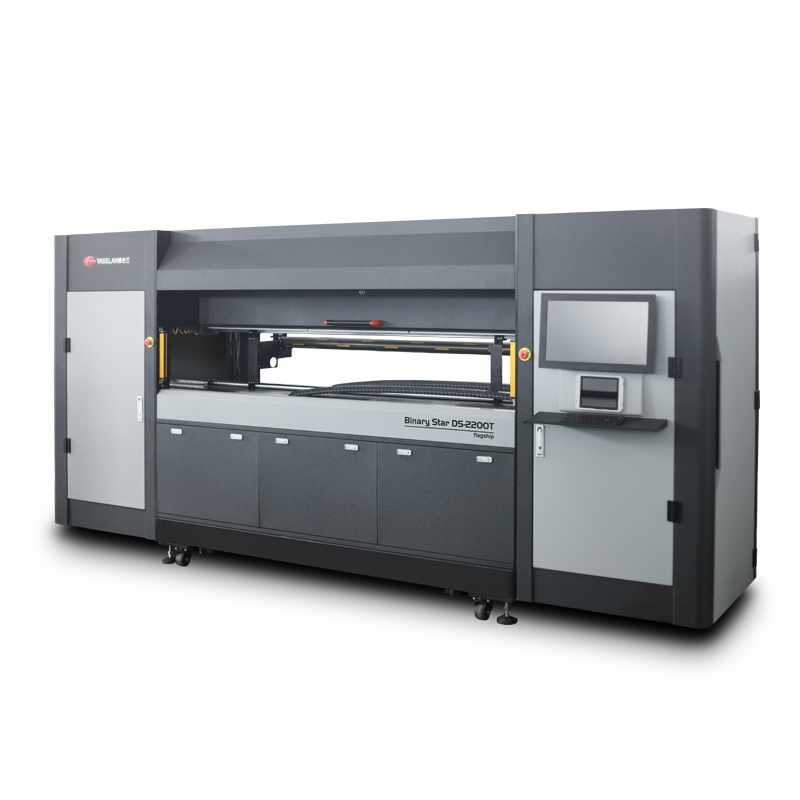

Binary Star DS-2200T

Binary Star DS-2200T

short description:

Binary Star DS-2200T double-sided Printer adopts the mechanical structure of synchronous vertical parallel movement of two carriages, we have the patent of feeding and take up structure, which can realize the materials’ both sides printing at the same time, the pattern alignment is very accurate so the production of high-quality orders is easily completed. The biggest advantage of this double-sided printer is the customization of differentiated programs, which can perfectly realize the application of different programs such as “ Same image same color; Same image different color; Different image different color ”. To achieve the best color saturation and finished product effect of the materials through the control of ink volume on both sides. Our double-sided printer can get good printing results and the operation is simple and convenient as well. The patent automatic cleaning system can continue to complete high-quality jobs through only a few steps then can easily complete the printing operation.


Product Detail

VIDEO

Product Tags

Features

Diverse Printheads Permutation Modes

C M Y K /C M Y K LC LM /C M Y K LC LM O B (FM, FY) Support 8 spot colors custom solution

Machine Features

1.Two sides of staggered row Epson printhead (i3200-A1). Support high speed printing.

2.The image size parameters can be adjusted freely according to the design requirements. Achieve a variety of custom application solutions, such as same image same color, same image different color, different image different color.

3.Automatic moisturizing ink purge control system, X-Y-Z axles synchronized driving. The automatic ink cleaning system can effectively solve the splashed ink generated during printing.

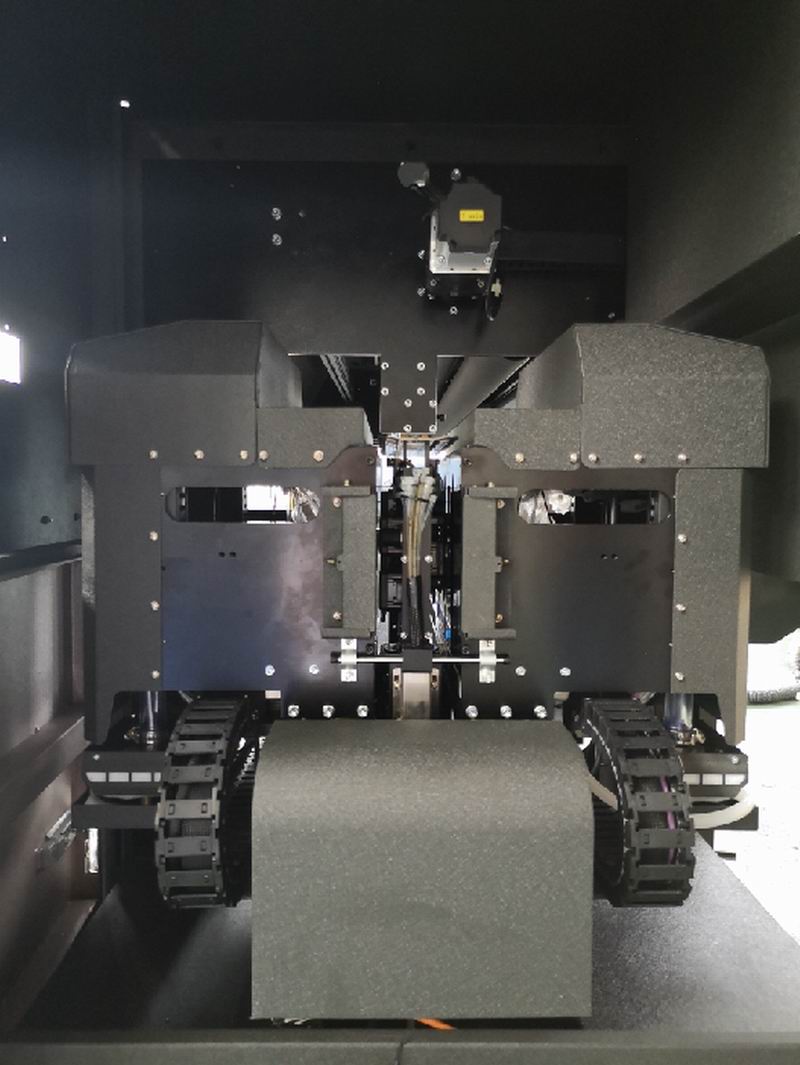

4.Two carriages synchronously print and automatically adjust the roll to roll media.

Product Advantages

1

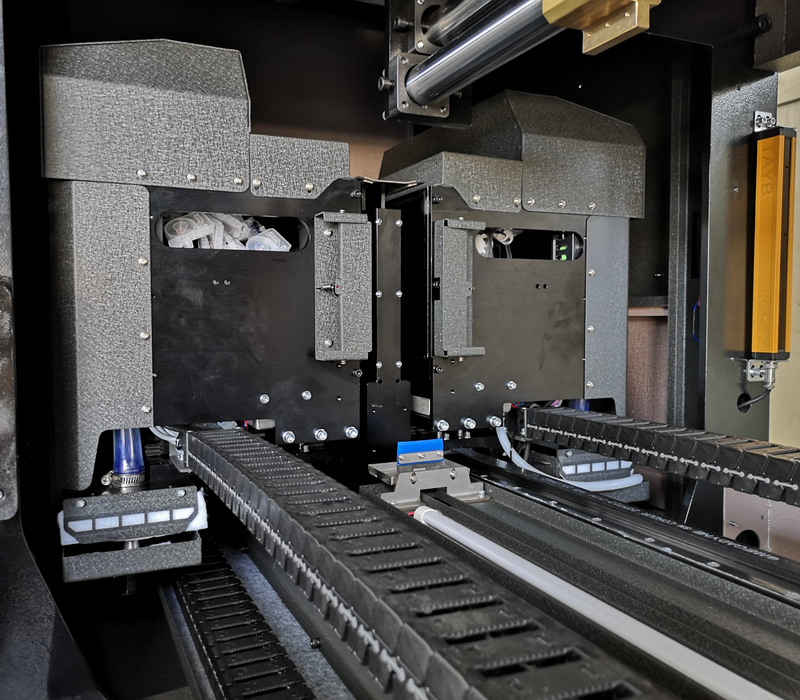

Automatic moisturizing cleaning device

Automatic nozzle ink press and cleaning device, save time. When the device is out of use, the nozzle moisturizes reliably.

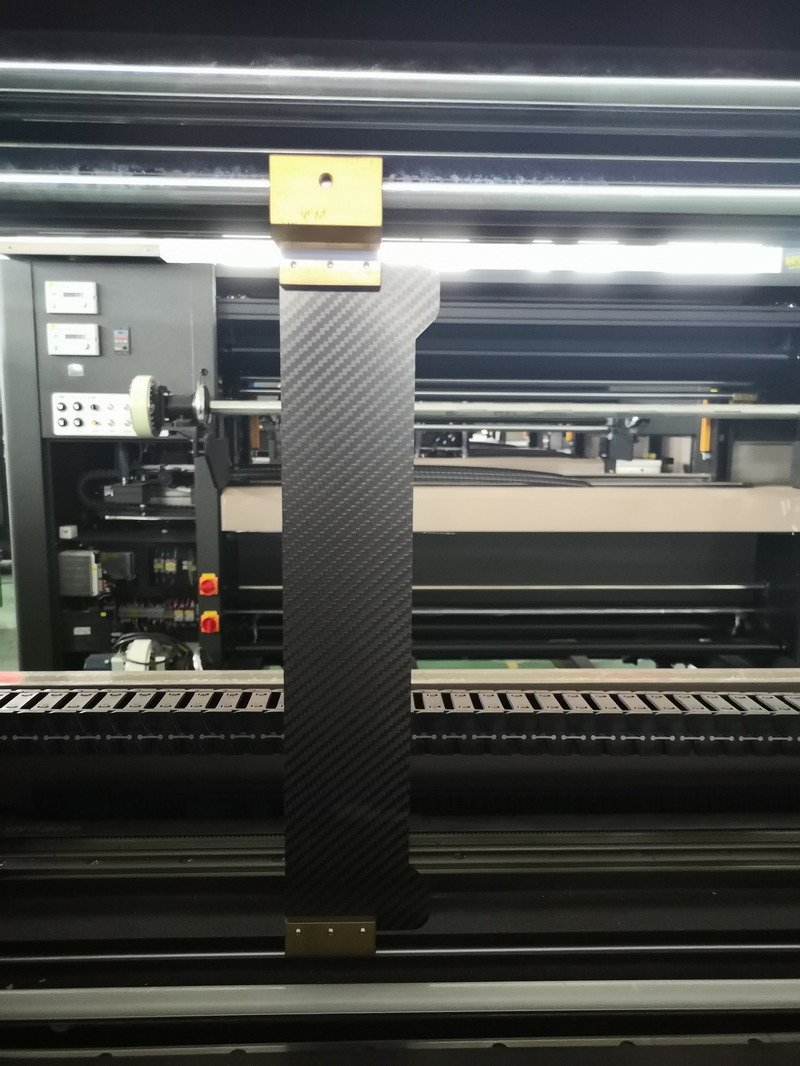

Clamp design

Some printing materials have the problem of edge rough or curling. When printing these materials, it is necessary to install the clamp device. Adapt to more materials printing.

2
3

Automatic moisturizing cleaning device

Automatic nozzle ink press and cleaning device, save time. When the device is out of use, the nozzle moisturizes reliably.

Application

1
2200T.doc
3
4
5

Technical Parameters

Printer Model

DS-2200T

Data Transfer TCP/IP network interface /USB
Printhead

Epson i3200-A1 (8H 4C/8C)

Operation System Windows7/10 64 bits (Flagship/Professional Version)
Printing Speed High Resolution Mode 4pass 65㎡/h 30㎡/h Computer Configuration Hard disk: SATA500/Hard disk format: NTFS/CPU: Inter i5/RAM: 8G-16G
Production Mode 3pass 85㎡/h 40㎡/h Drying System Synchronous drying before and after printing, the temperature can be adjusted according to different fabrics.
Sketch Mode 2pass 105㎡/h 50㎡/h Ink Purge Control System ink scraping and moisturizing system by patent
Ink Type Reactive ink , Acidic ink, Disperse direct printing ink Media Type Textile fabrics of animal and plant proteins, Chemical fiber, Banner cloth, light box cloth etc
Color M / Y / C / K / LM / LC (O, B optional,FM,FY) Maximum Power 7KW (Including heating system power5KW)
Media Max Diameter 350mm Operation Environment Humidity: 40%-70%  Temperature:20-30℃
Printing Width 2150mm Power Supply AC220V±10%   50HZ
Printing Thickness ≦3mm N.W 1800kg
RIP Software Maincenter/PrintFactory/Neostampa Machine Size L*W*H: 4155*1530*2021mm
Image Format TIFF / JPG / EPS / PDF Package Size L*W*H: 4165*1540*2031mm
