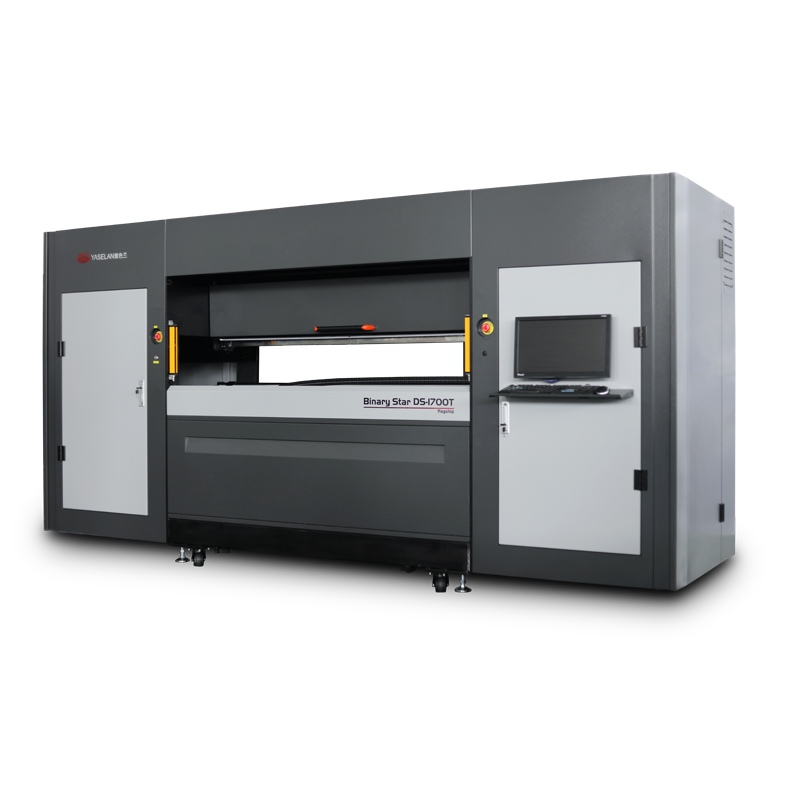

Binary Star DS-1700T Inkjet Printer

Binary Star DS-1700T Inkjet Printer

short description:

Binary Star DS-1700T double-sided Inkjet Printer adopts the mechanical structure of synchronous vertical parallel movement of two carriages, we have the patent of feeding and take up structure, which can realize the materials’ both sides printing at the same time, the pattern alignment is very accurate so the production of high-quality orders is easily completed. The biggest advantage of this double-sided printer is the customization of differentiated programs, which can perfectly realize the application of different programs such as “ Same image same color; Same image different color; Different image different color ”. To achieve the best color saturation and finished product effect of the materials through the control of ink volume on both sides. Our double-sided printer can get good printing results and the operation is simple and convenient as well. The patent automatic cleaning system can continue to complete high-quality jobs through only a few steps then can easily complete the printing operation.


Product Detail

Video

Product Tags

Features

Diverse Printheads Permutation Modes

C M Y K 4 colors

Machine Features

1.Two sides of staggered row Epson printhead (i3200-A1). Support high speed printing.

2.The image size parameters can be adjusted freely according to the design requirements. Achieve a variety of custom application solutions, such as same image same color, same image different color, different image different color.

3.Automatic moisturizing ink purge control system, X-Y-Z axles synchronized driving. The automatic ink cleaning system can effectively solve the splashed ink generated during printing.

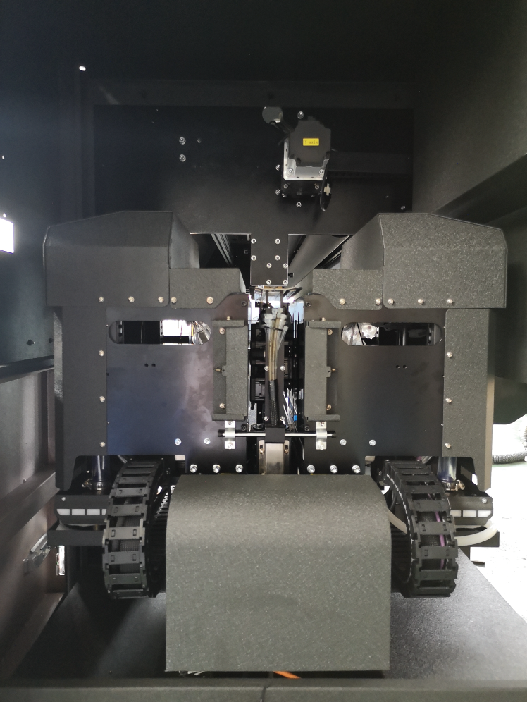

4.Two carriages synchronously print and automatically adjust the roll to roll media.

Product Advantages

1

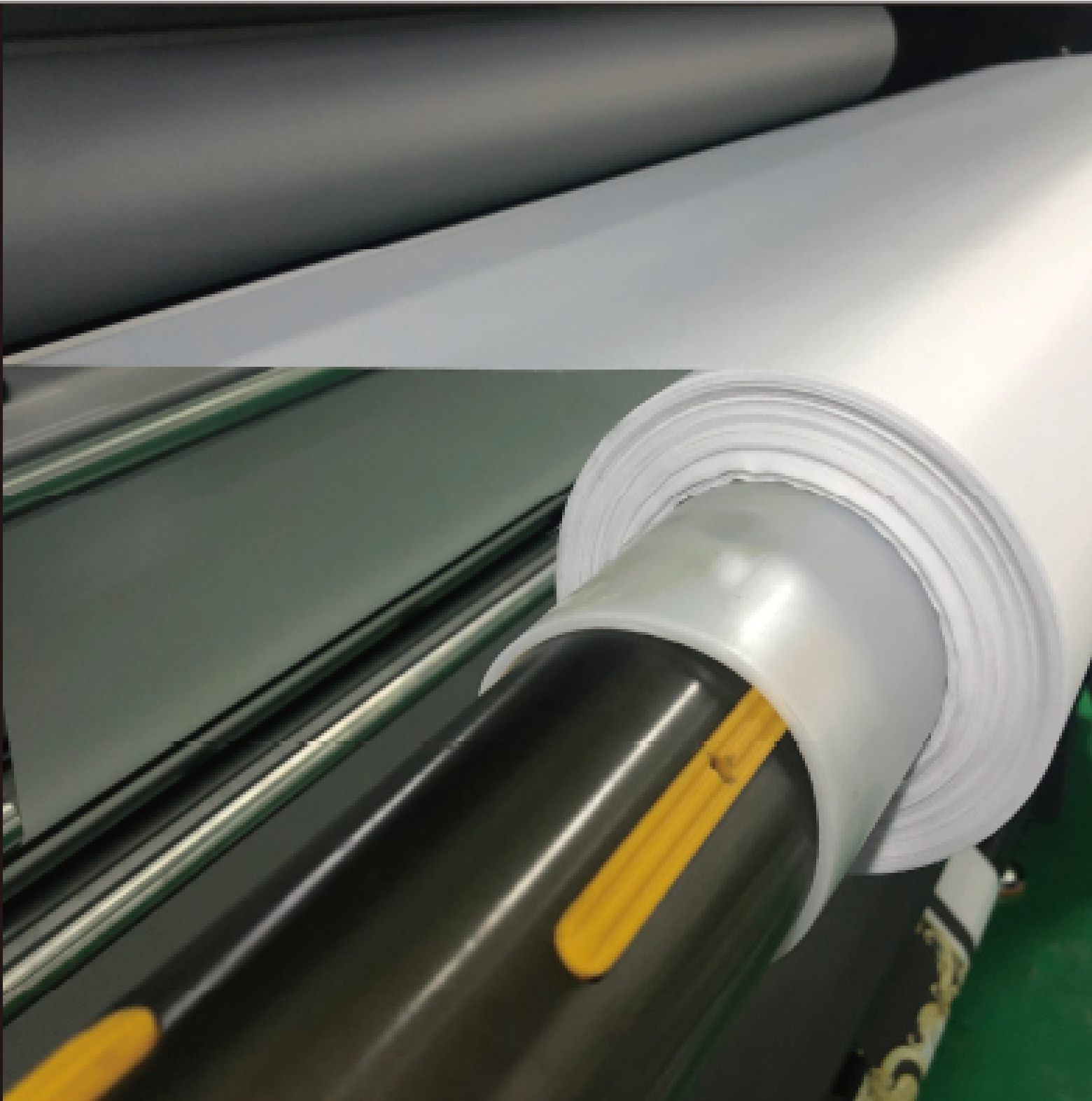

Feeding and takeup system

Use constant tension feeding and takeup system of textile equipment, magnetic powder controls feeding and takeup,110mm double rubber covered rollers feeding cloth, can be adjusted freely according to the thickness and tension of the material.

Ink misting collection device

To collect the micro-particle ink in the air generated during printing, each carriages has two collection devices, total four devices.

2
3

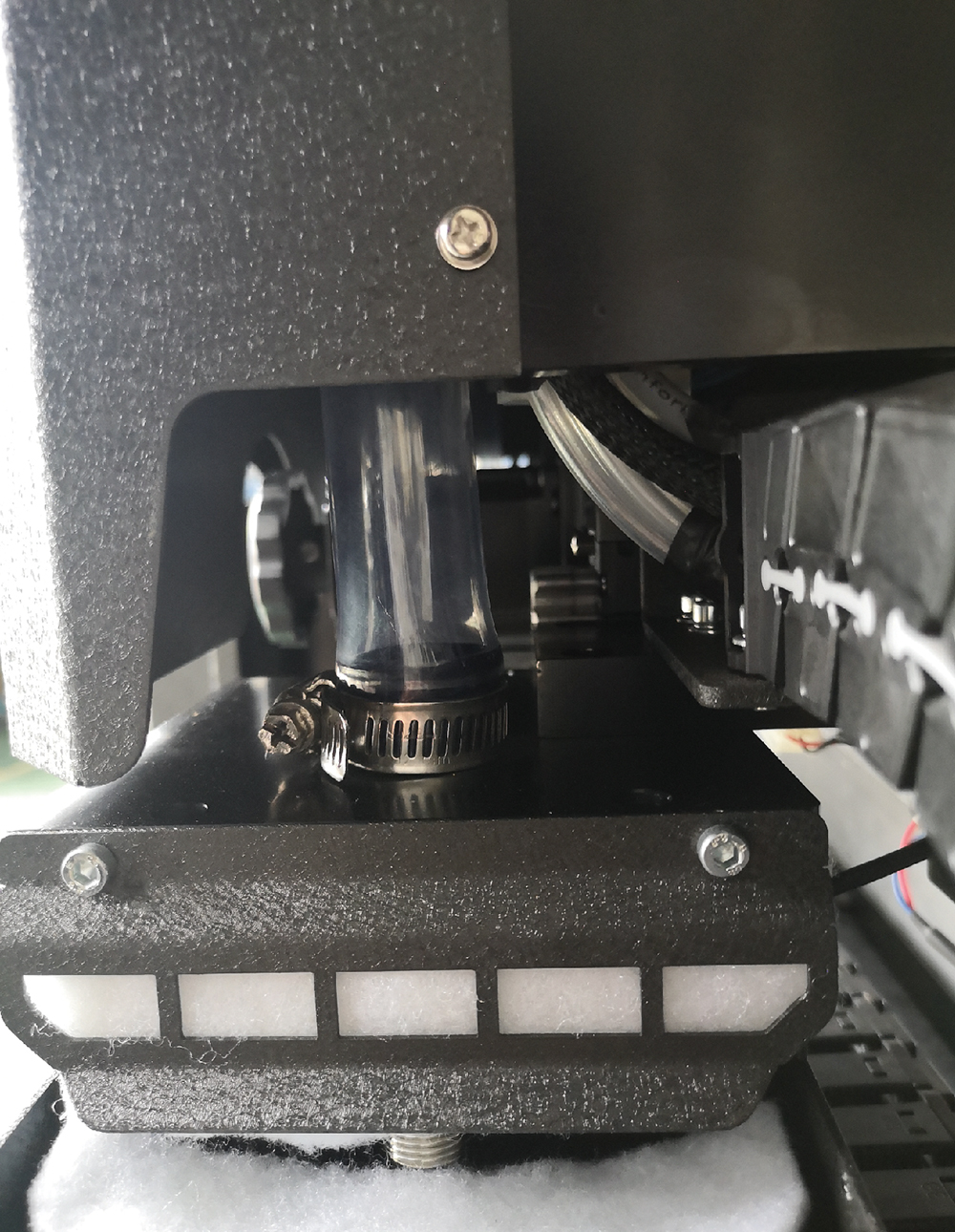

Automatic moisturizing cleaning device

Automatic nozzle ink press and cleaning device, save time. When the device is out of use, the nozzle moisturizes reliably.

Application

1
2200T.doc
3
4
5

Technical Parameters

Printer Model

DS-1700T

Data Transfer USB
Printhead

Epson i3200-A1 (4)

Operation System Windows7/10 64 bits (Flagship/Professional Version)

Printing Speed

High Resolution Mode 635*1200 dpi 4PASS 35㎡/h Computer Configuration Hard disk: SATA500/Hard disk format: NTFS/CPU: Inter i5/RAM: 8G-16G
Production Mode 317*1800 dpi 3PASS 40㎡/h Drying System Synchronous drying before and after printing, the temperature can be adjusted according to different fabrics.
Sketch Mode 635*600 dpi 2PASS 70㎡/h Ink Purge Control System Automatic printhead cleaning, ink scraping and moisturizing system by patent
Ink Type Special: Disperse direct printing ink Media Type  Chemical fiber, Banner cloth,  light box cloth etc
Color M / Y / C / K Maximum Power 7KW (Including heating system power5KW)
Media Max Diameter 350mm Operation Environment Humidity: 40%-70%  Temperature: 20-30℃
Printing Width 1700mm Power Supply AC220V±10%   50HZ
Printing Thickness ≦3mm N.W 1550kg
RIP Software Maincenter Machine Size L*W*H: 3847*1782*1937mm
Image Format TIFF / JPG / EPS / PDF Package Size L*W*H: 3857*1792*1947mm
