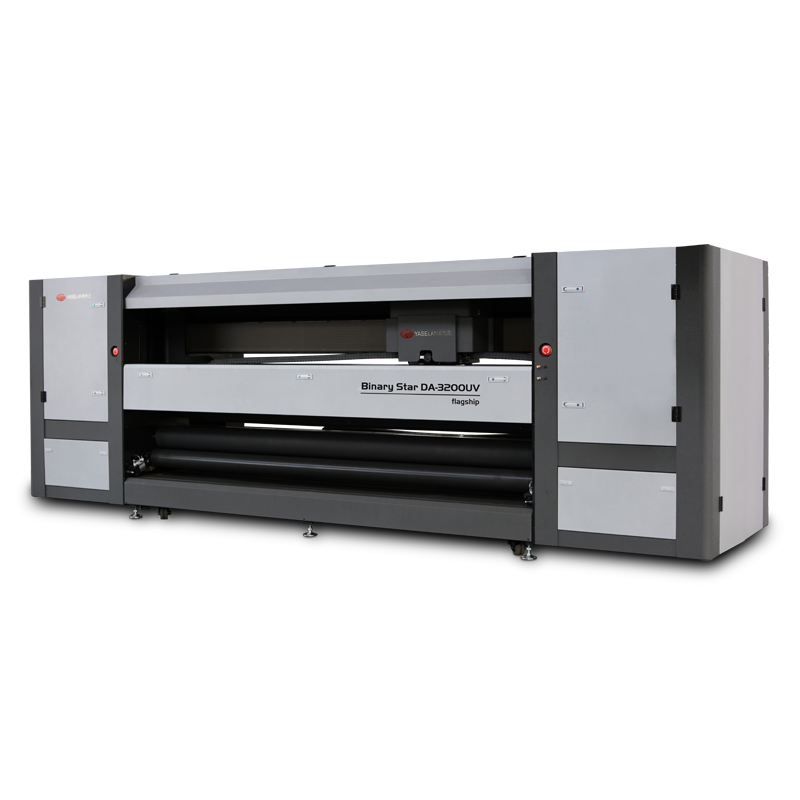

Binary Star DA-3200UV

Binary Star DA-3200UV

short description:

Binary Star DA-3200UV double-sided Printer adopts the mechanical structure of asynchronous movement of two carriages, we have the patent of feeding and take up structure, which can realize the materials’ both sides printing asynchronously, the pattern alignment is very accurate so the production of high-quality light box is easily completed. Our double-sided UV printer can get good printing results and the operation is simple and convenient as well. The patent automatic cleaning system can continue to complete high-quality jobs through only a few steps then can easily complete the printing operation.


Product Detail

VIDEO

Product Tags

Features

Diverse Printheads Permutation Modes

CMYK/CMYK LC LM Support 6 colors custom solution

Machine Features

1.It's equipped with two carriages of staggered row industrial Ricoh printhead (G6).

2.The image size parameters can be adjusted freely according to the design requirements. Achieve a variety of custom application solutions, such as same image same color, same image different color, different image different color.

3.Two carriages asynchronously print and automatically adjust the distance between the printing media. Support printing up to ≦2mm soft roll to roll media.

4.Dual constant temperature water-cooled variable frequency air suction platform, synchronously cools the excess temperature on the surface of printing media to ensure the flatness of printing media.

Product Advantages

1

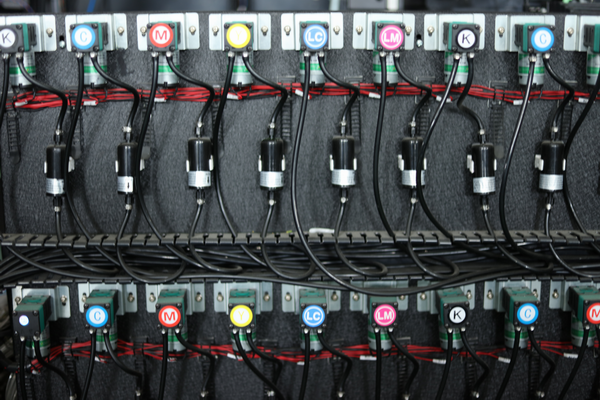

Intelligent differential pressure negative pressure ink supply system

Intelligent double negative pressure system, automatically adjust the pressure difference, provide more stable ink supply, to ensure the stability of continuous operation of the whole machine。

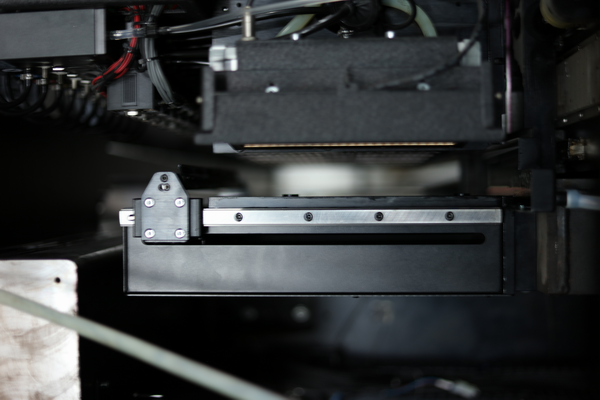

Intelligent nozzle moisturizing device

Optional nozzle automatic scraping ink, automatic cleaning device. Easy to realize the nozzle maintenance and keep hands not to touch ink.

2
3

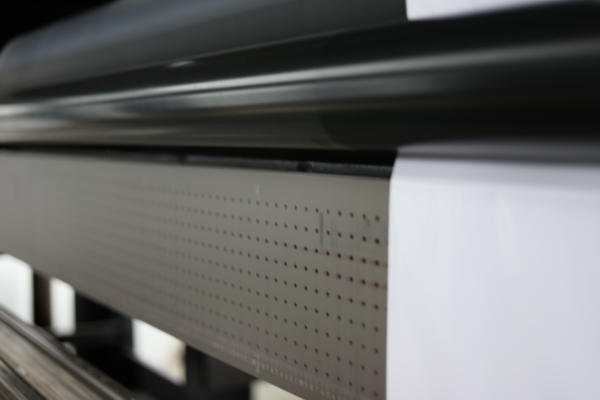

Intelligent constant temperature water-cooled frequency conversion  adsorption platform.

It is suitable for soft materials without wrinkle, no deviation, to ensure the double printing alignment accuracy, the precision of the machine continuous operation platform is maintained 0.1mm, 4 pounds of text is clearer.

Application

1
2
3
4
5

Technical Parameters

Printer Model

DA-3200UV

Operation System Windows7/10 64 bits (Flagship/Professional Version)
Printhead

KM1024i(12-24H YMCK LC LM)

Data Transfer TCP /IP network interface /USB

Printing Speed

 Sketch mode 4pass one

group

26㎡/h

two

groups

52㎡/h Drying LED-UV lamp curing
 Production Mode

6pass

22㎡/h 44㎡/h Media Type All UV flex banner, coated banner, reflective transfer film,

back interlining cloth, PE light box panel

High Resolution Mode 8pass 13㎡/h 26㎡/h
Printhead

KM1024i(8-16H YMCK )

Moisture control Patented automatic ink pressing moisturizing cleaning system
Printing Speed Sketch mode 4pass one

group

26㎡/h  two

groups

52㎡/h Maximum Power 9KW (Including cooling system power 2KW)
Production Mode 6pass 22㎡/h 44㎡/h Operation Environment Humidity: 40%-70%  Temperature: 20-30℃
High Resolution Mode 8pass 13㎡/h 26㎡/h
Ink Type Imported environment-friendly UV ink (Soft/Neutral) Power Supply AC220V±10%   50HZ
Color M /Y /C /K /LM /LC Operation Air Pressure 0.6MPA
Media Max Diameter 350mm N.W 3500kg
Printing width 3200mm Machine Size L*W*H: 5695*1800*1930mm
Printing Thickness ≦2mm Package Size L*W*H: 5800*1930*2220mm
RIP Software PHOcenterRINT Computer Configuration Hard disk: SATA500/Hard disk format: NTFS/CPU: Inter i5/RAM: 8G-16G
Image Format TIFF /JPG /EPS /PDF
