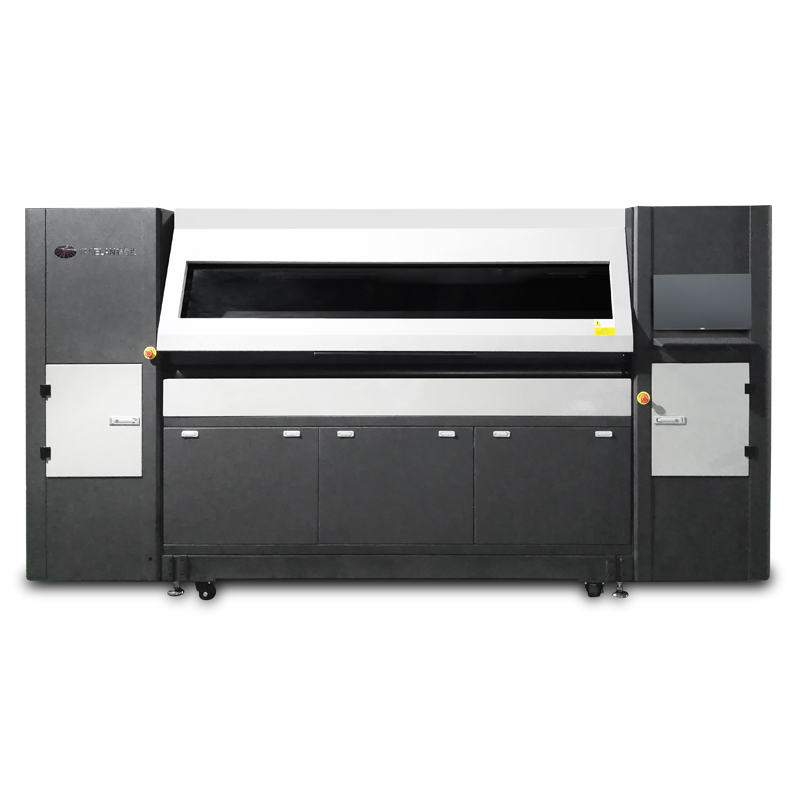

Binary Star DA-2200UV

Binary Star DA-2200UV

short description:

Binary Star DA-2200UV double-sided Printer adopts the mechanical structure of asynchronous movement of two carriages, we have the patent of feeding and take up structure, which can realize the materials’ both sides printing asynchronously, the pattern alignment is very accurate so the production of high-quality light box is easily completed. Our double-sided UV printer can get good printing results and the operation is simple and convenient as well. The patent automatic cleaning system can continue to complete high-quality jobs through only a few steps then can easily complete the printing operation.


Product Detail

VIDEO

Product Tags

Features

Diverse Printheads Permutation Modes

CMYK/CMYK LC LM  Support 6 colors custom solution

Machine Features

1.It's equipped with two carriages of straight row industrial Ricoh printhead (GEN5).

2.The image size parameters can be adjusted freely according to the design requirements. Achieve a variety of custom application solutions, such as same image same color, same image different color, different image different color.

3.Two carriages asynchronously print and automatically adjust the distance between the printing media. Support printing up to ≦1mm soft roll to roll media.

4.Dual constant temperature water-cooled variable frequency air suction platform, synchronously cools the excess temperature on the surface of printing media to ensure the flatness of printing media.

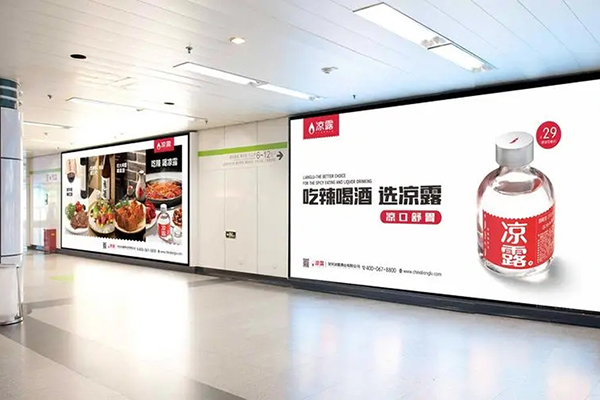

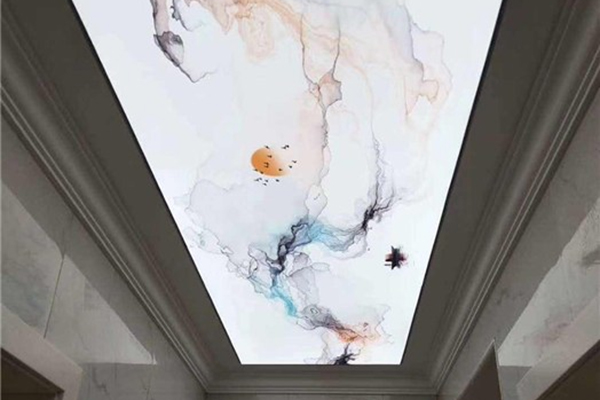

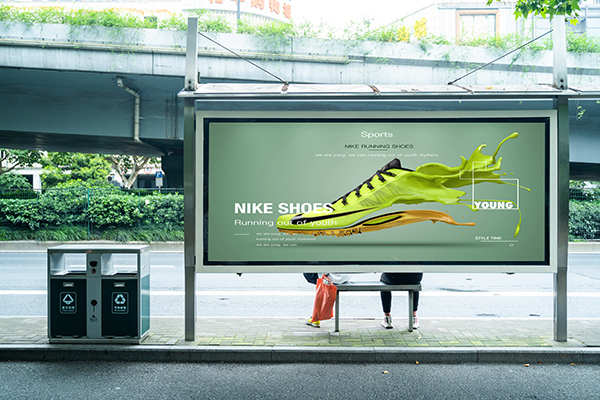

Application

1
2
3
4
5
6

Technical Parameters

Printer Model

DA-2200UV

Operation System Windows7/10 64 bits (Flagship/Professional Version)
Printhead

Ricoh GEN5 (4-8)

Computer Configuration Hard disk: SATA500/Hard disk format: NTFS/CPU: Inter i5/RAM: 8G-16G
Ink Type Imported&environment-friendly UV ink (Soft/Neutral) Drying LED-UV lamp curing
Color M /Y /C /K /LM /LC Cleaning Control nk purge system by manual
Printing Speed High Resolution

Mode 8Pass

4H 10㎡/h 8H 20㎡/h Media Type All UV flex banner, soft film, coated banner, reflective transfer film, back interlining cloth, PE light box panel
Production

Mode 6Pass

15㎡/h 30㎡/h Maximum Power 6KW (Including cooling system power 2KW)
Media Max Diameter 350mm Operation Environment Humidity: 40%-70%  Temperature: 20-30℃
Printing width 2200mm Power Supply AC220V±10%   50HZ
Printing Thickness ≦1mm Operation Air Pressure 0.6MPA
RIP Software Neostampa /PHOcenterRINT N.W 1800kg
Image Format TIFF /JPG /EPS /PDF Machine Size L*W*H: 3700*1500*1940mm
Data Transfer TCP /IP network interface /USB Package Size L*W*H: 3900*1700*2200mm
